Contender LED Luminaire Series Retrofit Clear Polycarbonate Globe NEMA Type V Symmetrical 5000 K CCT/ 70 CRI Voltage- BU-120-277V, 50/60Hz, 125-300 Vdc BH-347-480 Vac, 50/60Hz Class I, Division 2, Groups A, B, C, D Class I, Zone 2, IIC Zone 21, IIIC Class I, Zone 2, IIC Class II, Division 1, Group F, G Class II, Division 2, Group F, G Class III Simultaneous Exposure Type 3R, 4,4X IP66/IP67 Suitable for Use in Wet Locations Marine Outside Type (Salt Water) ABS Certified DLC Qualified Product listed Refer to catalog for additional options
Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
LED | 26.7 W | 3241 lm | 121 lm/W | 5181 K | 70 |
Mounting mode
Pendant, Ceiling mounted
Shape and measurements
Height: 1.00 in
Diameter: 7.50 in
Adjustability
Fixed
Electric
System power: 26.7 W
Appliance Class: II
Protection
IP: 67
Explosion zone suitability: 2, 21

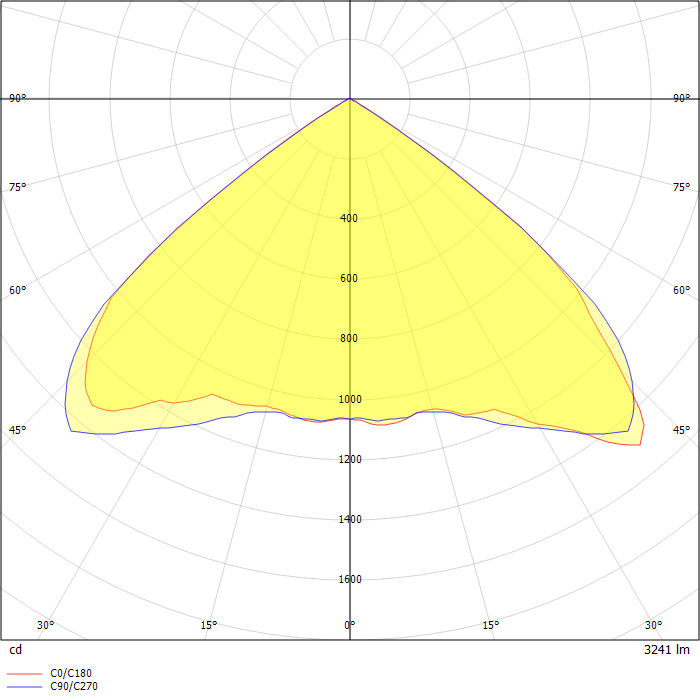

Photometric data
ZIP file
