Product data sheet

On Basic 14,4

91-7927-00-00

LedsC4

Product image 1: On Basic 14,4
Product image 1: On Basic 14,4

Product image 1: On Basic 14,4



IP
20

LedsC4 On Basic 14,4 91-7927-00-00 LED strip for indoor use. Warranty: 5 Years. Product net weight (Kg): 0.13 Product length (mm): 5000 Product width or diameter (mm): 10 Product height (mm): 2 Class 3. IP: IP20. LED. No. of lampholders or LEDs: 1. Maximum power of light source: 72W. Colour temperature: 3000K. Colour rendering index: 80. MacAdam Steps: 3. Hours of life: 50.000h L80B20. UGR: 34.8. Photobiological risk: RG0. Real flux (lm): 9309. Real lm/W: 129. Voltage: 3. Equipment included: No, but it is needed. Total power: 72.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 14.4 W 1861 lm 129 lm/W 3000 K 80
On Basic 14,4

On Basic 14,4

Light output 1

1 x LED

Mounting mode

Ceiling mounted, Standing / Bollard

Shape and measurements

Length: 39.37 in

Width: 0.39 in

Height: 0.08 in

Adjustability

Fixed

Electric

System power: 14.4 W

Appliance Class: III

Protection

IP: 20

Designation labels: CE

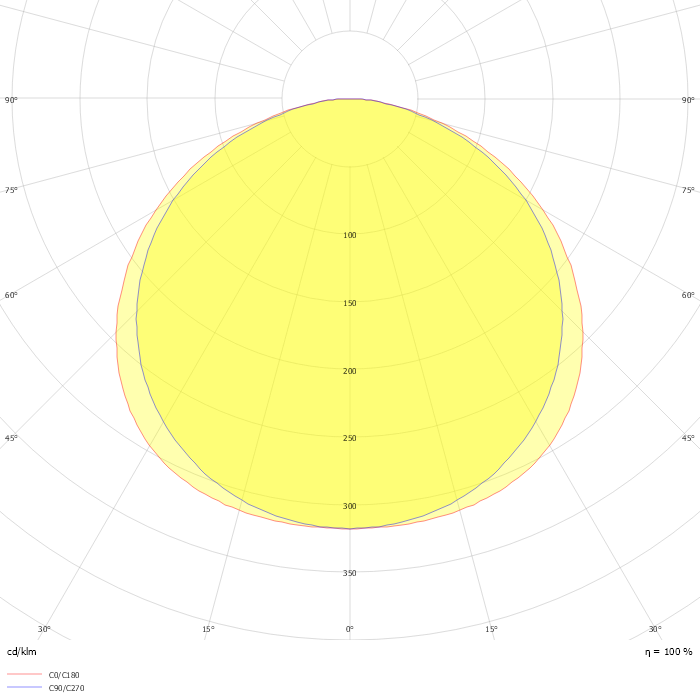

Photometric data

ZIP file

Download file
