Product data sheet

SafeSite LED Low Bay 4000 Lumens, Ultra Wide Distribution, Diffused Polycarbonate Dome Lens

LEDLUC24xxxxxN

Dialight

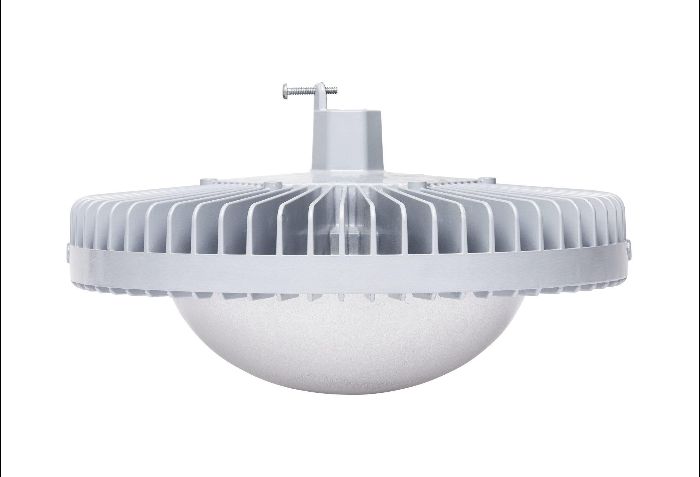

Product image 1: SafeSite LED Low Bay 4000 Lumens, Ultra Wide Distribution, Diffused Polycarbonate Dome Lens
Product image 1: SafeSite LED Low Bay 4000 Lumens, Ultra Wide Distribution, Diffused Polycarbonate Dome Lens

Product image 1: SafeSite LED Low Bay 4000 Lumens, Ultra Wide Distribution, Diffused Polycarbonate Dome Lens



IP
66

IK
10

SafeSite LED Low Bay 4,000 Lumens 42 Watts 100-277V AC, 120-250V DC Cool White, 80CRI Diffused Polycarbonate Dome Lens Class I, Div. 2, Groups A,B,C,D Class II, Div. 1, Groups E,F,G Class II. Div. 2, Groups F,G Class III UL 8750 UL 1598/A (wet locations) CSA C22.2 No. 250.0-08 NEMA 4X IK10 Ultra Wide Distribution IP66/67 LM79 Tested IES File

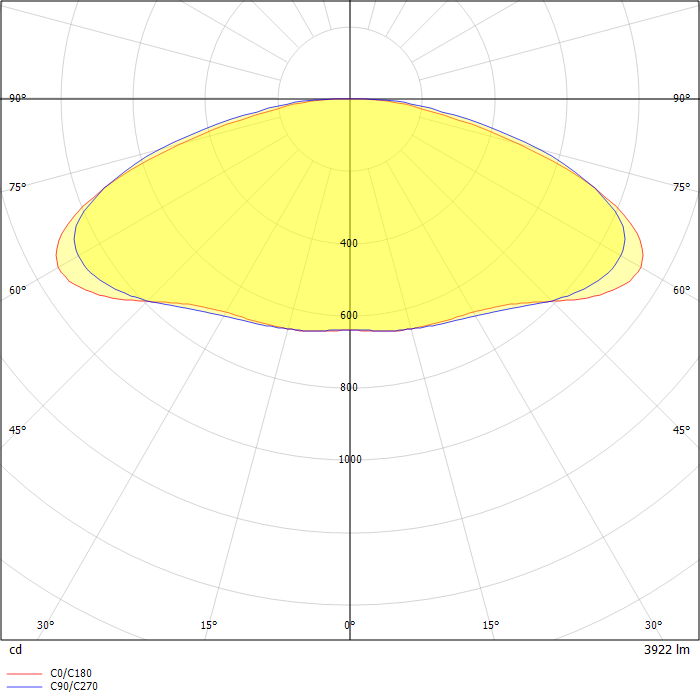

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 38.6 W 3922 lm 102 lm/W 5181 K 80
SafeSite LED Low Bay 4000 Lumens, Ultra Wide Distribution, Diffused Polycarbonate Dome Lens

SafeSite LED Low Bay 4000 Lumens, Ultra Wide Distribution, Diffused Polycarbonate Dome Lens

Light output 1 (integrated)

LED

LOR:100%
Total power:38.6 W

Mounting mode

Pendant

Shape and measurements

Length: 15.94 in

Width: 15.94 in

Height: 8.27 in

Adjustability

Rotatable, Tiltable

Electric

System power: 38.6 W

Appliance Class: I

Protection

IP: 66

IK: 10

Other operating numbers

Ambient temperature range: -40...149°F
