Product data sheet

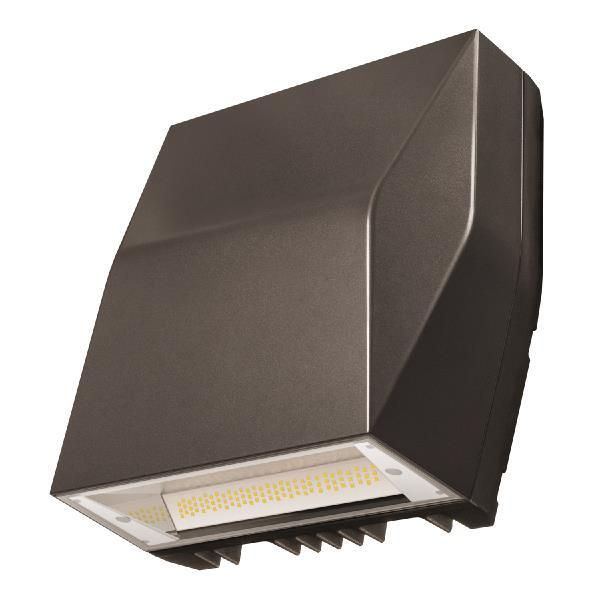

AXC Axcent LED Wall Mount

AXCL10A-W-GRF

Cooper Lighting

Available in 14W - 123W (1,800 - 17,000 lumens) models, Full cutoff and refractive lens models available, Energy and maintenance savings up to 95% compared to HID, Energy efficient illumination results in up to 144 LPW, Lumen Select Back Box accessory for dusk-to-dawn and surface conduit, Hook-N-Lock mechanism for quick, easy installation, Wall mount, inverted wall, floodlight, and pole mount options, 120-277V Standard, 347V or 480V optional. Standard 0-10V dimming, Integrated stand-alone or wireless controls for additional savings

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 102 W 9831 lm 96 lm/W 3000 K 100
AXC Axcent LED Wall Mount

AXC Axcent LED Wall Mount

Light output 1 (integrated)

LED

Mounting mode

Pole top mounted

Shape and measurements

Length: 9.00 in

Width: 3.50 in

Height: 0.39 in

Adjustability

Fixed

Electric

System power: 102 W

Protection

IP: 47

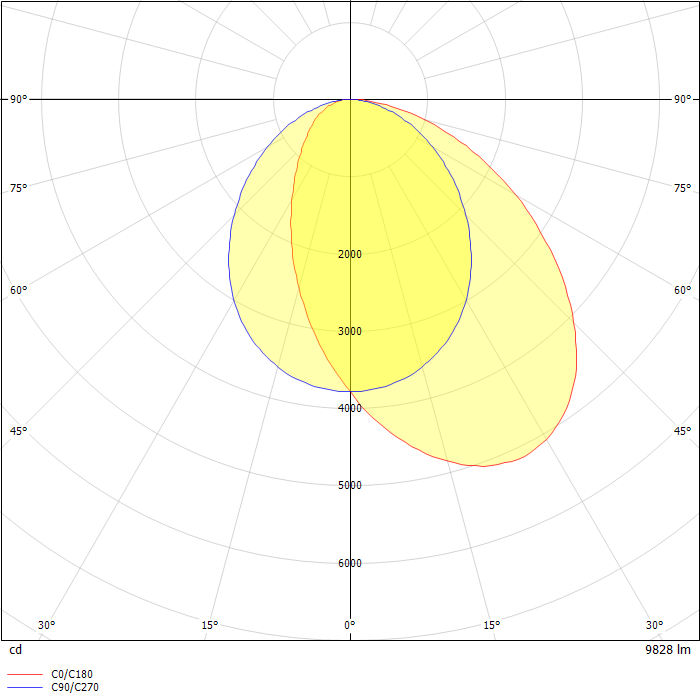

Photometric data

ZIP file
