Product data sheet

DuroSite LED Top Conduit Linear 6700 Lumens, 4 Foot, Medium Distribution, Diffused Polycarbonate Lens

LTM3C4H2W

Dialight

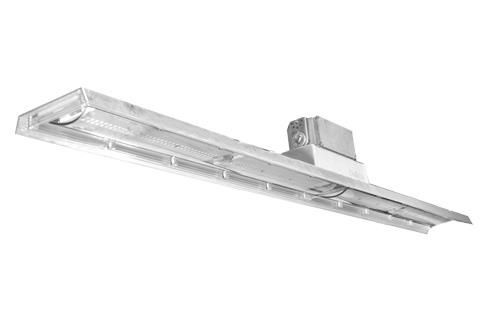

Product image 1: DuroSite LED Top Conduit Linear 6700 Lumens, 4 Foot, Medium Distribution, Diffused Polycarbonate Lens
Product image 1: DuroSite LED Top Conduit Linear 6700 Lumens, 4 Foot, Medium Distribution, Diffused Polycarbonate Lens

Product image 1: DuroSite LED Top Conduit Linear 6700 Lumens, 4 Foot, Medium Distribution, Diffused Polycarbonate Lens



IP
66

IK
09

DuroSite LED Top Conduit Linear 6,700 Lumens 66 Watts 100-277V AC Cool White, 75CRI Diffused Polycarbonate Lens 4 Foot Length UL 1598/A CSA C22.2 No. 250 NEMA 4X IK09 Medium Distribution IP66

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 65.9 W 6908 lm 105 lm/W 5181 K 75
DuroSite LED Top Conduit Linear 6700 Lumens, 4 Foot, Medium Distribution, Diffused Polycarbonate Lens

DuroSite LED Top Conduit Linear 6700 Lumens, 4 Foot, Medium Distribution, Diffused Polycarbonate Lens

Light output 1 (integrated)

LED

Mounting mode

Pendant

Shape and measurements

Length: 47.80 in

Width: 4.76 in

Height: 3.07 in

Adjustability

Rotatable, Tiltable

Electric

System power: 65.9 W

Voltage: 120 V AC, 230 V AC, 240 V AC, 277 V AC

Appliance Class: I

Protection

IP: 66

IK: 09

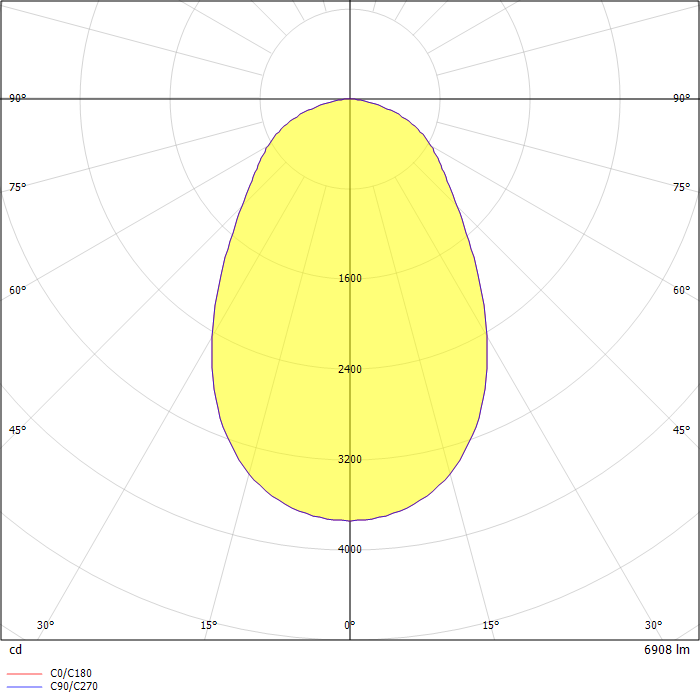

Photometric data

ZIP file

Download file
