Product data sheet

NLED490A1200 18W W45 4000K 嵌装线型灯(平光黑)

70090943

NVC

Product image 1: NLED490A1200 18W W45 4000K 嵌装线型灯(平光黑)
Product image 1: NLED490A1200 18W W45 4000K 嵌装线型灯(平光黑)

Product image 1: NLED490A1200 18W W45 4000K 嵌装线型灯(平光黑)



IP
20

IK
05

产品描述： 光源类型：ETI LED SMD 驱动电源：内置无频闪一体恒流驱动 灯体材质：铝型材 灯体颜色：04 平光黑 系列可选 ： NLED490A嵌装/NLED490AM明装 灯具规格 ：长600/1200 mm，宽W45/W55/W75mm 安装方式 ：嵌入/吊装/方通支架 灯体颜色 ：99 半光白/04 平光黑 色温 ：3000K/4000K/5700K 显指 ：Ra80 功率 ：9W/18W/30W 功率因数PF ：0.5/0.84/0.97 光通量 ：600/1300lm W45 1300/2200lm W55 1300/2200lm W75 更新说明： 暂无更新，敬请期待。 更多信息： 暂无链接，敬请期待。

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 18.59 W 1300 lm 70 lm/W 4000 K 80
NLED490A1200 18W W45 4000K 嵌装线型灯(平光黑)

NLED490A1200 18W W45 4000K 嵌装线型灯(平光黑)

Light output 1 (integrated)

LED

Mounting mode

Ceiling recessed

Shape and measurements

Length: 2.64 in

Width: 48.27 in

Height: 2.13 in

Weight: 0.934 kg

Adjustability

Fixed, Height adjustable

Electric

System power: 18.59 W

Appliance Class: I

Protection

IP: 20

IK: 05

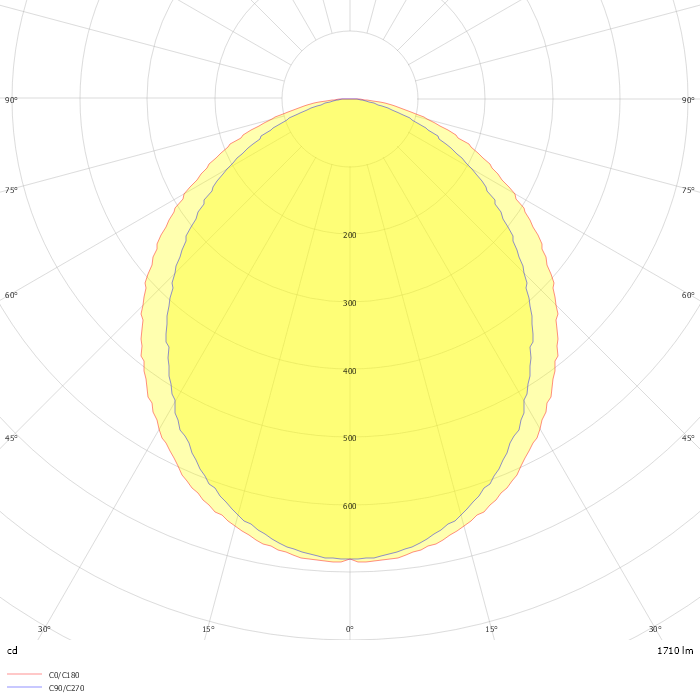

Photometric data

ZIP file

Download file
