Product data sheet

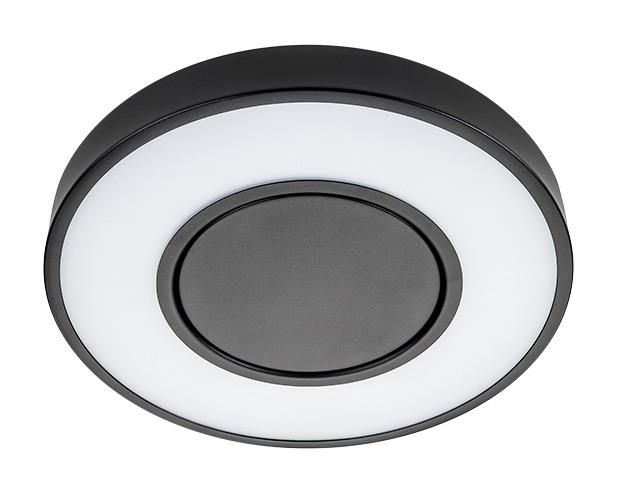

Circulus Black 1420lm 2700K Ra>80 Trailing edge dimming

7021982140006

SG Armaturen

Round surface-mounted luminaire, wholly uniform light with attractive design, made of powder-coated aluminium, simple to mount by removing the back plate, which can be screwed on to all known ceiling outlets/electrical boxes, clips with option of additional looping, connectors between lamp and mounting plate, dimmable driver phase-dimming/DALI and sensor options. Both visible and hidden cabling possible. Light distribution Direct Light technic LED 15W 2700K Ra>80 SDCM 3 L80/B10 >50,000 hrs L70/B50 >100,000 hrs Control/Dimming Trailing edge dimming Protection Class I IP21 Materials and finish Housing: Steel Colour: Black (RAL 9004) Optics: Acrylic (PMMA) Mounting/Connection Surface, Indoor Screwless terminal block Max. luminaires per circuit breaker: B10: 19, B16: 30, C10: 31, C16: 51

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 15 W 1420 lm 95 lm/W 2700 K 80
Circulus Black 1420lm 2700K Ra>80 Trailing edge dimming

Circulus Black 1420lm 2700K Ra>80 Trailing edge dimming

Light output 1

1 x LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 14.17 in

Width: 14.17 in

Height: 1.77 in

Adjustability

Fixed

Design

Color of housing: Black

Electric

System power: 15 W

Appliance Class: I

Protection

IP: 21

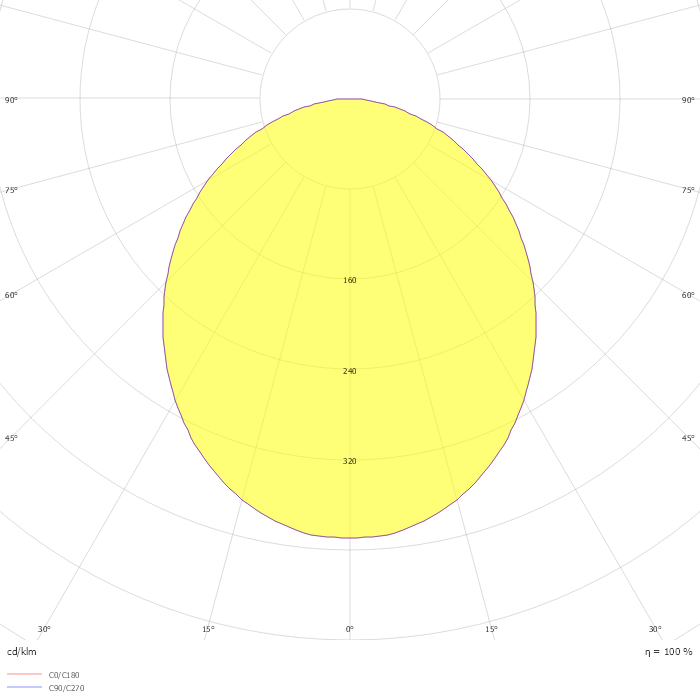

Photometric data

ZIP file
