Product data sheet

PALETTA 3 Surface facade luminaires

PA-31574-O-8027

LIGMAN

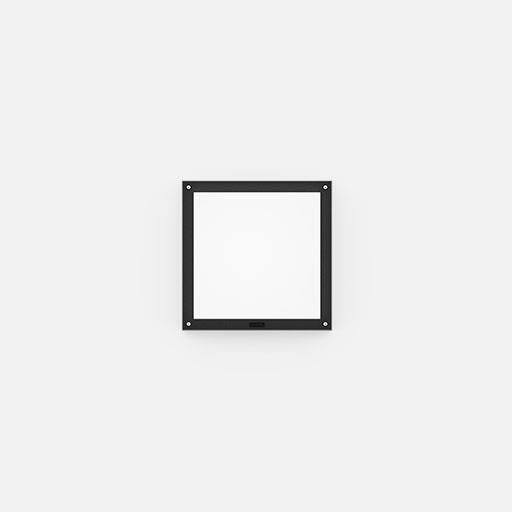

Product image 1: PALETTA 3 Surface facade luminaires
Product image 1: PALETTA 3 Surface facade luminaires

Product image 1: PALETTA 3 Surface facade luminaires



IP
65

IK
08

- Lamp LED - CRI Ra > 80 - MacAdam Ellipse 3 SDCM - Colour TW(2700 - 6500K) - Die-cast aluminium housing and frame - Pre-treated before powder coating ensuring high corrosion resistance - Two cable entries for through wiring - Stainless steel fasteners in grade 304 with zinc flake coating (ZFC) - Durable silicone rubber gasket - Opal UV-stabilised polycarbonate diffuser - Optional surface mounting box for easy wiring or conduit connection when wiring from behind is not possible

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 20 W 1511 lm 76 lm/W 2700 K 80
PALETTA 3 Surface facade luminaires

PALETTA 3 Surface facade luminaires

Light output 1 (integrated)

LED

Mounting mode

Wall mounted

Shape and measurements

Length: 13.98 in

Width: 13.98 in

Height: 3.54 in

Weight: 3 kg

Adjustability

Fixed

Electric

System power: 20 W

Ballast: ECG

Controller: Dimmable 1..10V, DALI

Appliance Class: I

Protection

IP: 65

IK: 08

Surface temperature: 40°C

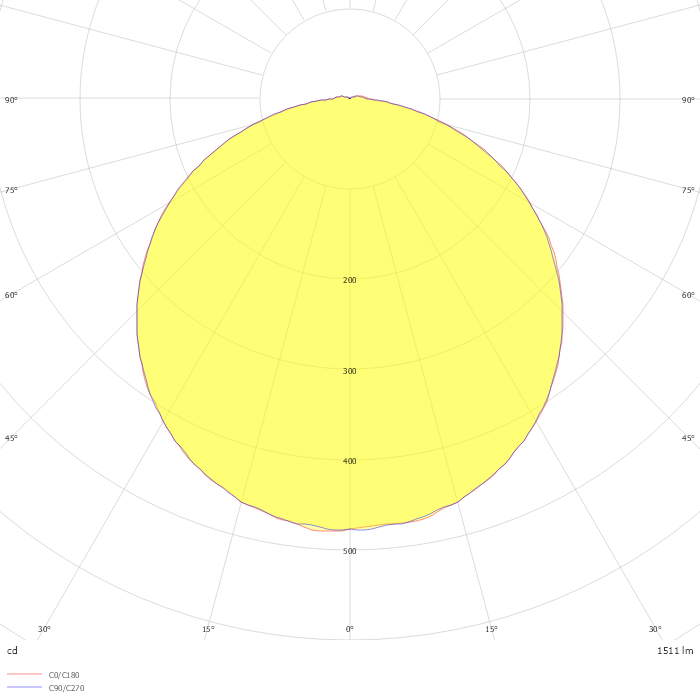

Photometric data
