Product data sheet

ProSite LED Floodlight 30000 Lumens, NEMA 6 Distribution, Polycarbonate Lens

F1E46L2Fxxxxxx

Dialight

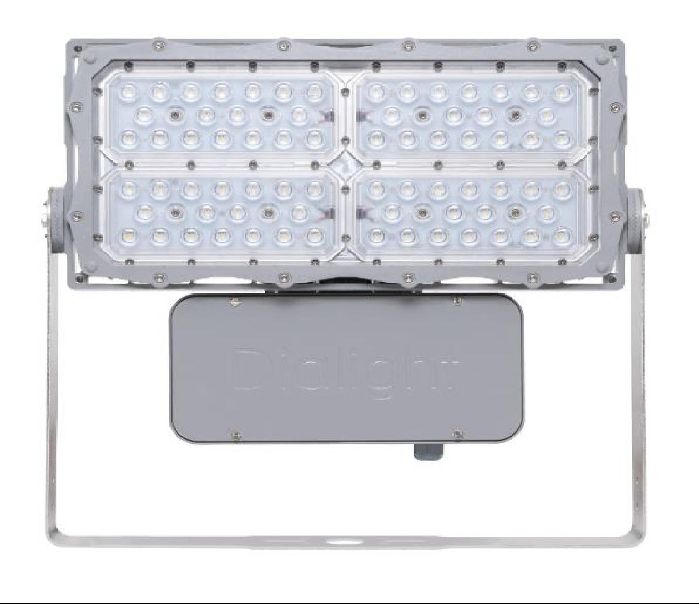

Product image 1: ProSite LED Floodlight 30000 Lumens, NEMA 6 Distribution, Polycarbonate Lens
Product image 1: ProSite LED Floodlight 30000 Lumens, NEMA 6 Distribution, Polycarbonate Lens

Product image 1: ProSite LED Floodlight 30000 Lumens, NEMA 6 Distribution, Polycarbonate Lens



IP
66

IK
10

ProSite LED Floodlight 27,902 Lumens 234 Watts 120-277V AC / 120-250V DC Neutral White, 70CRI Polycarbonate Lens CE ENEC RCM IK10 NEMA 6 Distribution IP66/67 LM79 Tested IES File

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 234 W 27902 lm 119 lm/W 3783 K 84
ProSite LED Floodlight 30000 Lumens, NEMA 6 Distribution, Polycarbonate Lens

ProSite LED Floodlight 30000 Lumens, NEMA 6 Distribution, Polycarbonate Lens

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted, Pole top mounted

Shape and measurements

Length: 15.00 in

Width: 16.20 in

Height: 3.07 in

Adjustability

Rotatable, Tiltable

Electric

System power: 234 W

Appliance Class: I

Protection

IP: 66

IK: 10

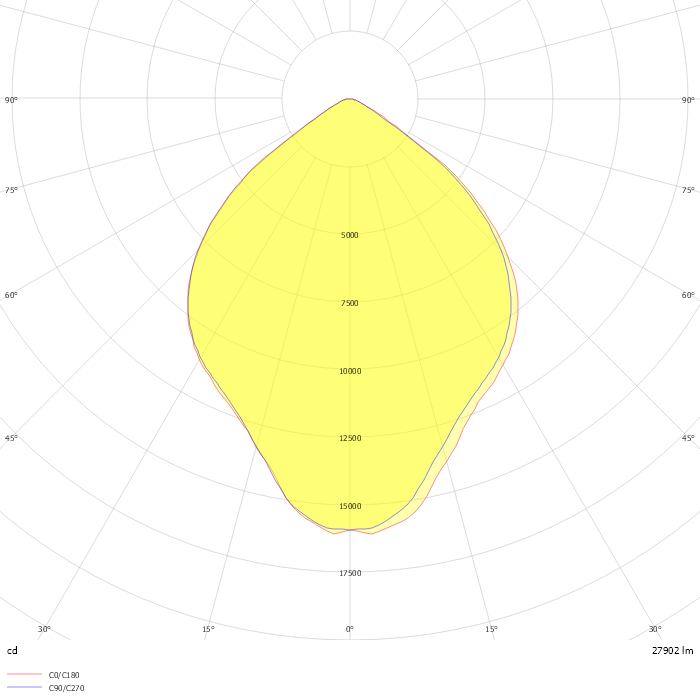

Photometric data

ZIP file

Download file
