Product data sheet

CODEMASTER LED 70 W NEMA TYPE V

CMLEDC702G5BU

Appleton (Emerson EGS)

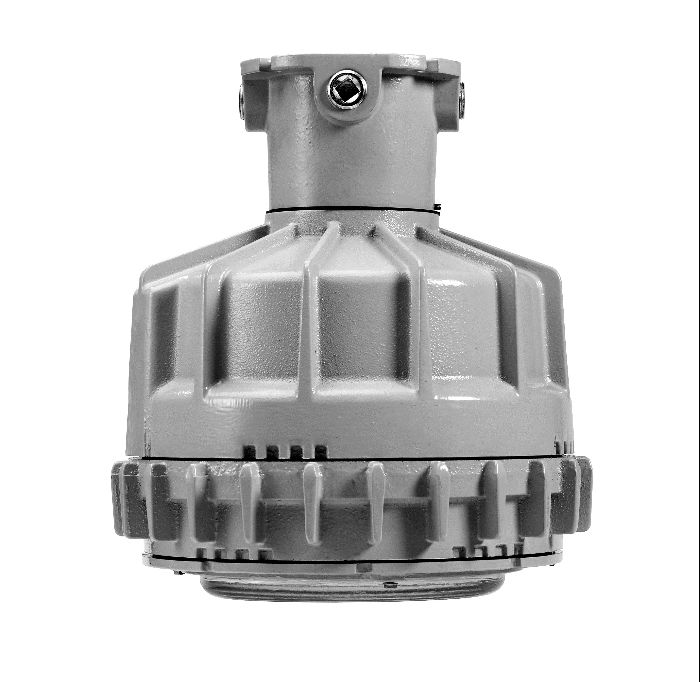

Product image 1: CODEMASTER LED 70 W NEMA TYPE V
Product image 1: CODEMASTER LED 70 W NEMA TYPE V

Product image 1: CODEMASTER LED 70 W NEMA TYPE V



IP
67

Codemaster LED Factory Sealed Luminaire Explosionproof , Dust-Ignitionproof 70W equivalent LED Ceiling Mount 120-277V, 50/60Hz 3/4" NPT Hub Clear Glass Gobe Class I, Division 1 & 2, Groups B, C, D Class I, Zone 1, Group IIB + H2 Class II, Division 1, Group E,F, G Class II,Division 2, group F,G. Class III Simultaneous Exposure Type 3R, 4X IP66/67 Suitable for Use in Wet Locations Marine Outside Type (Salt Water) Refer to catalog for additional options

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 34.1 W 2581 lm 76 lm/W 5181 K 70
CODEMASTER LED 70 W NEMA TYPE V

CODEMASTER LED 70 W NEMA TYPE V

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Height: 12.00 in

Diameter: 12.00 in

Adjustability

Fixed

Electric

System power: 34.1 W

Appliance Class: I

Protection

IP: 67

Explosion zone suitability: 1

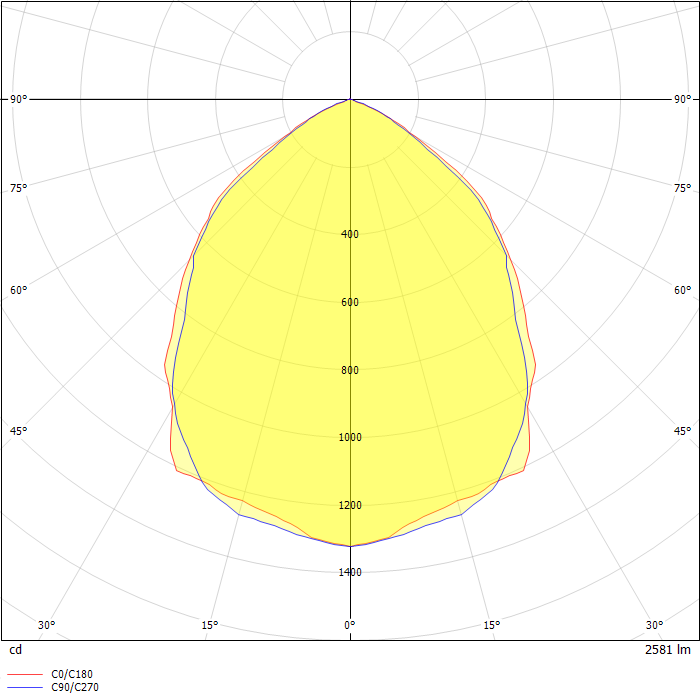

Photometric data

ZIP file

Download file
