Product data sheet

FLAT KREIS

211398.002.76

RZB

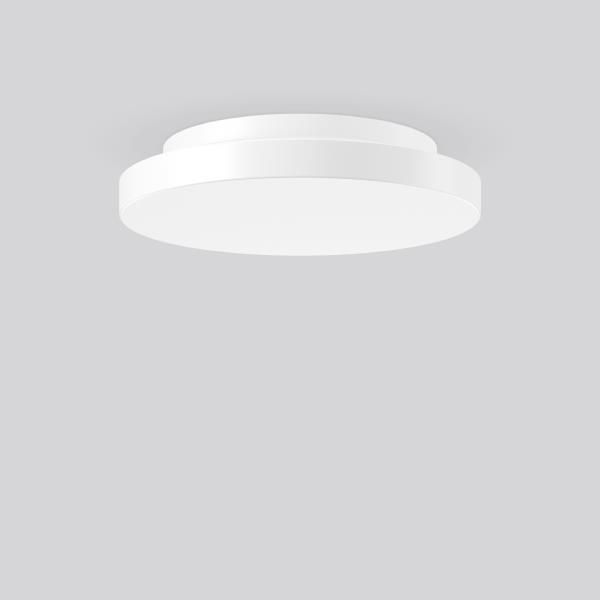

Series: FLAT KREIS Decorative round surface-mounted luminaire. Base: plastic. Mouth blown 3-layer opal glass (Triplex glass) with satin finish. Glass fastening: bayonet fixing. Homogeneous and smooth light distribution. Colour: white Diameter: 500 mm Height: 100 mm Lamp: LED Socket: without socket Colour temperature: 3000K Colour rendering index (CRI): 83 System power: 19 W Rated luminous flux: 1900 lm Luminous efficiency: 100 lm/W Control gear: AC power, DALI dimmable Protection class: I Type of protection: IP 43

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 19 W 1900 lm 100 lm/W 3000 K 80
FLAT KREIS

FLAT KREIS

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Height: 3.94 in

Diameter: 19.69 in

Adjustability

Fixed

Electric

System power: 19 W

Protection

IP: 43

IK: 03

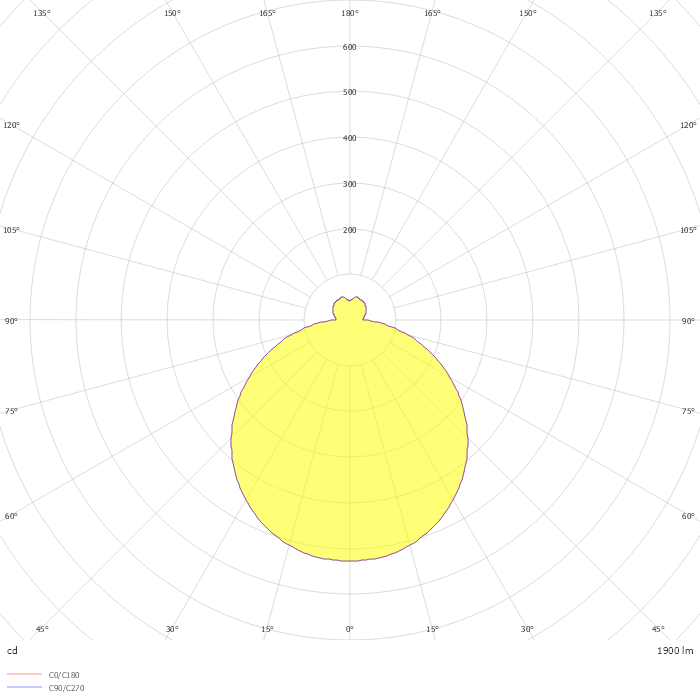

Photometric data

ZIP file
