Product data sheet

Iris Track Pipe 35º

AV25-18X9Z2OSO8

LedsC4

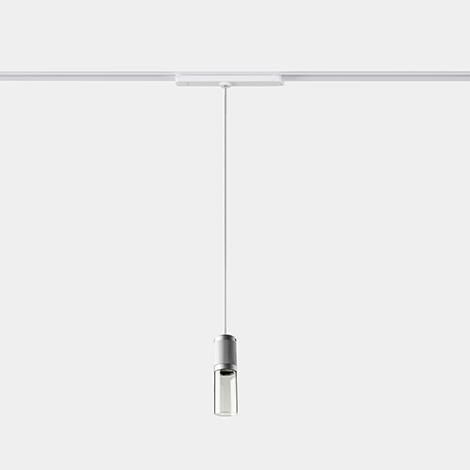

Product image 1: Iris Track Pipe 35º
Product image 1: Iris Track Pipe 35º

Product image 1: Iris Track Pipe 35º



IP
20

LedsC4 Iris Track Pipe 35º AV25-18X9Z2OSO8 Pendant for indoor use. Structure material: Aluminium. Structure finish: White/Grey/Transparent. Warranty: 5 Years. Product net weight (Kg): 0.45 Product length (mm): 185 Product width or diameter (mm): 55 Product height (mm): 2000 Class 2. IP: IP20. LED. No. of lampholders or LEDs: 1. LED brand: CREE. Maximum power of light source: 16.4W. Colour temperature: 4000K. Colour rendering index: 92. MacAdam Steps: 2. Hours of life: 50.000h L80B20. UGR: 27.0. Photobiological risk: RG2. % de Flickering: +/- 3%. Real flux (lm): 2176. Real lm/W: 118. Voltage / frequency range: 220-240V/50-60Hz. Voltage: 33,7. Equipment included: Yes. Total power: 18.5. Power factor: 0.95. Dimmable equipment included: ON-OFF.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 18.5 W 2176 lm 118 lm/W 4000 K 90
Iris Track Pipe 35º

Iris Track Pipe 35º

Light output 1

1 x LED

Mounting mode

Pendant, Table luminaire

Shape and measurements

Length: 2.17 in

Width: 2.17 in

Height: 6.69 in

Adjustability

Fixed

Electric

System power: 18.5 W

Appliance Class: II

Protection

IP: 20

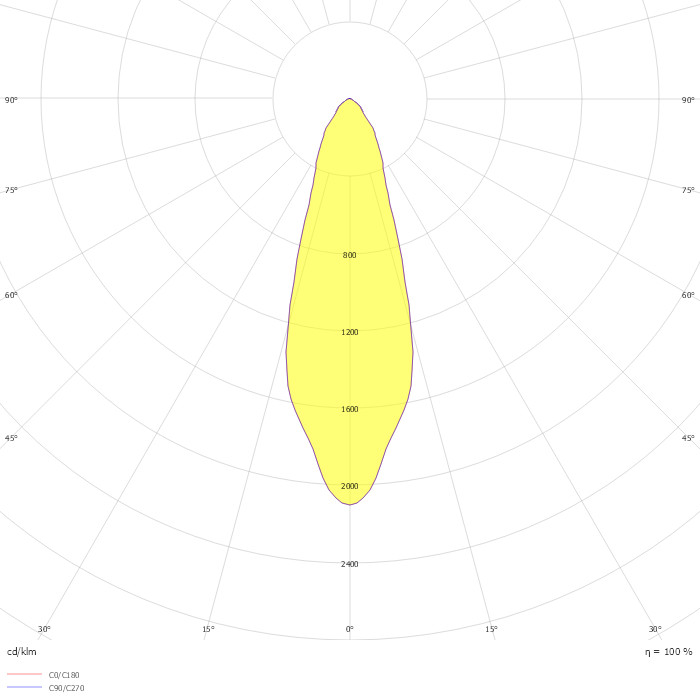

Photometric data

ZIP file

Download file
