Product data sheet

AVENIDA HERITAGE LENS LED P ED 25W 3000lm 3000K IP66 O20 - for parks and parking lots gray II

130332.5L042.031

LUG

Product image 1: AVENIDA HERITAGE LENS LED P ED 25W 3000lm 3000K IP66 O20 - for parks and parking lots gray II
Product image 1: AVENIDA HERITAGE LENS LED P ED 25W 3000lm 3000K IP66 O20 - for parks and parking lots gray II

Product image 1: AVENIDA HERITAGE LENS LED P ED 25W 3000lm 3000K IP66 O20 - for parks and parking lots gray II



IP
66

IK
10

Stylized park luminaire, based on the architecture of AVENIDA LED luminaires and referring in character to classic decorative luminaires. Mounting: on pillar ø60/76mm, with mounting bracket (included) Body: high pressure die-cast aluminum Lateral Surface Wind Exposed: 0,111 m² Power: 220-240V 50/60Hz Lifetime (L90B10); 100 000 h Available on request: DALI, 10kV surge protection, NTC Other remarks: the pole is not part of the luminaire Warranty: 5 years Application: cycle paths, avenues, sidewalks, parks, residential, public spaces, playgrounds, promenade, residential area roads Type of optics: O20 - for parks and parking lots

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 25 W 3000 lm 120 lm/W 3000 K 70
AVENIDA HERITAGE LENS LED P ED 25W 3000lm 3000K IP66 O20 - for parks and parking lots gray II

AVENIDA HERITAGE LENS LED P ED 25W 3000lm 3000K IP66 O20 - for parks and parking lots gray II

Light output 1 (integrated)

LED

Mounting mode

Pole top mounted

Shape and measurements

Length: 22.09 in

Width: 22.09 in

Height: 22.44 in

Adjustability

Fixed

Design

Color of housing: Silver gray

Electric

System power: 25 W

Appliance Class: II

Protection

IP: 66

IK: 10

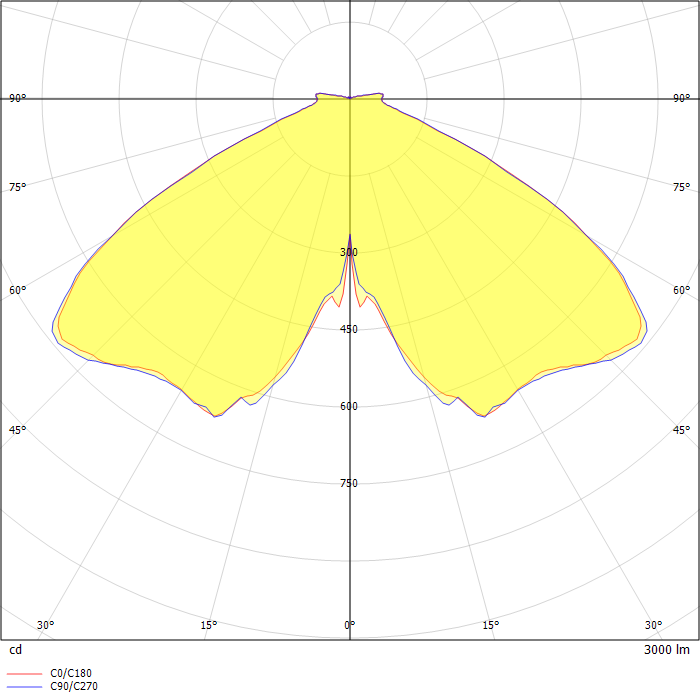

Photometric data

ZIP file
