Product data sheet

TRIONA rectangle P

312733.002.1.76

RZB

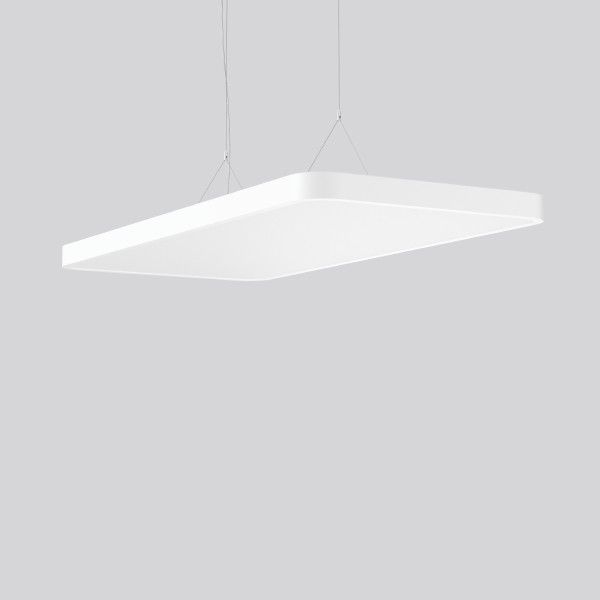

Series: TRIONA rectangle Decorative rectangular LED pendant area luminaire. Flat, seamless frame: aluminium extrusion profile, powder coated. Cover made of sheet steel, powder-coated. Canopy made of aluminium, powder-coated. Diffuser made of non-yellowing plastic (PMMA), opal. LED backlight technology for homogeneous illumination of the entire light-emitting surface. 2-point steel cable suspension, steplessly adjustable. Easy installation with transparent, adjustable pendant cable and canopy with magnetic fixing. Integrated DALI converter for controlling, switching and dimming. Suitable for through-wiring. Colour: traffic white, matt (RAL 9016) Length: 1300 mm Width: 600 mm Height: 52 mm Suspension length: 1200 mm Lamp: LED Socket: without socket Colour temperature: 4000K Colour rendering index (CRI): 80 System power: 104 W Rated luminous flux: 13500 lm Beam angle Down: 109° / 108° Luminous efficiency: 130 lm/W Control gear: Converter, dimmable, DALI Protection class: I Type of protection: IP 20

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 104 W 13500 lm 130 lm/W 4000 K 80
TRIONA rectangle P

TRIONA rectangle P

Light output 1 (integrated)

LED

Mounting mode

Pendant

Shape and measurements

Length: 23.62 in

Width: 51.18 in

Height: 2.05 in

Adjustability

Fixed

Design

Color of housing: White

Electric

System power: 104 W

Protection

IP: 20

IK: 03

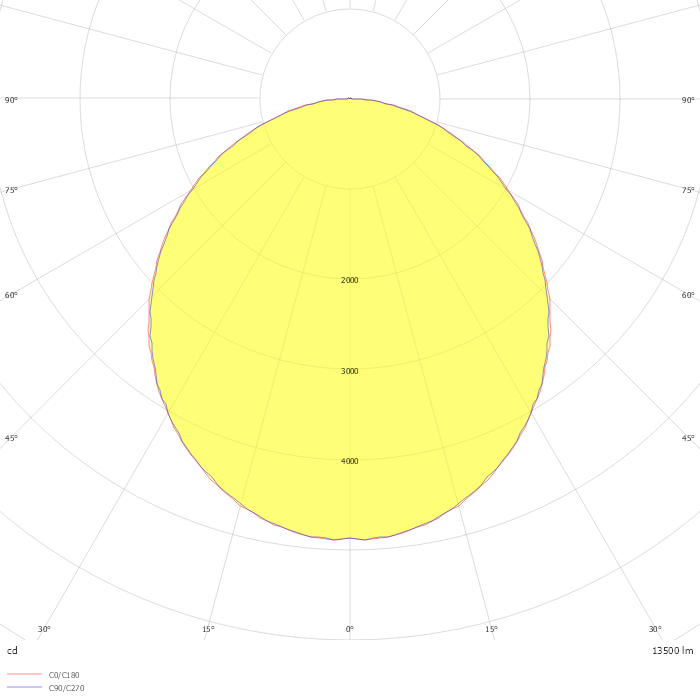

Photometric data

ZIP file
