Product data sheet

Candle 1 Body Surface

00-6017-27-27

LedsC4

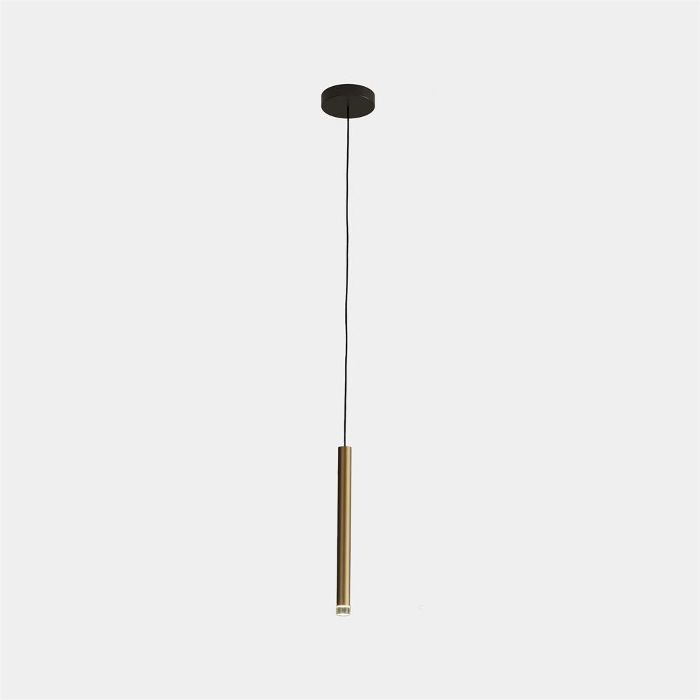

Product image 1: Candle 1 Body Surface
Product image 1: Candle 1 Body Surface

Product image 1: Candle 1 Body Surface



IP
20

LedsC4 Candle 1 Body Surface 00-6017-27-27V3 Pendant for indoor use. For downlighting. Structure material: Steel, Aluminium. Structure finish: Brass. Diffuser material: Methacrylate. Diffuser finish: Transparent. Warranty: 5 Years. Product net weight (Kg): 0.5 Product width or diameter (mm): 130 Product height (mm): 2500 Class 1. IP: IP20. LED. No. of lampholders or LEDs: 1. LED brand: CREE. Driver brand: HEP. Maximum power of light source: 3.2W. Colour temperature: 2700K. Colour rendering index: 90. MacAdam Steps: 2. Hours of life: 50.000h L80B20. UGR: 22. Photobiological risk: RG1. Real flux (lm): 154. Real lm/W: 38. Voltage / frequency range: 100-240/50-60Hz. Voltage: 9. Equipment included: Yes. Total power: 4.1. Power factor: 0.90. Dimmable equipment included: ON-OFF.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 4.23 W 154 lm 36 lm/W 2700 K 90
Candle 1 Body Surface

Candle 1 Body Surface

Light output 1

1 x LED

Mounting mode

Pendant, Table luminaire

Shape and measurements

Length: 0.98 in

Width: 0.98 in

Height: 12.44 in

Adjustability

Fixed

Electric

System power: 4.23 W

Appliance Class: I

Protection

IP: 20

Photometric data

ZIP file

Download file
