Product data sheet

PETRELUX P9 2x36w T26 HF

96012627

Thorn Lighting

Product image 1: PETRELUX P9 2x36w T26 HF
Product image 1: PETRELUX P9 2x36w T26 HF

Product image 1: PETRELUX P9 2x36w T26 HF



IP
65

Zone 1 (ATEX Cat 2) fluorescent luminaire, designed and constructed to EEx ed 'increased safety' concept, for 2 x 36 T26 lamps. Integral high frequency electronic ballast. Body, constructed from aluminium alloy extrusion with AA25 anodised finish, incorportes linear retention slot for T8 quick fit bolts (supplied). Body end caps are moulded Petrelux Green polycarbonate and are bonded and sealed to the body. Enclosure is clear UV stabilised polycarbonate with linear prisms. Enclosure is held to body by internal cams operated by a single hexagonal key. IP65. Certification code EEx ed 11C T4. Dimensions: 1365 x 192 x 142 mm Total power: 71 W Weight: 9.2 kg

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
2 x General service incandescent lamp 36 W 6700 lm 119 lm/W 3000 K 80
PETRELUX P9 2x36w T26 HF

PETRELUX P9 2x36w T26 HF

Light output 1

2 x General service incandescent lamp

Mounting mode

Ceiling mounted

Shape and measurements

Length: 53.74 in

Width: 7.56 in

Height: 5.59 in

Weight: 9.2 kg

Electric

System power: 71 W

Voltage: 220-240 V AC

Appliance Class: I

Protection

IP: 65

Designation labels: CE

Explosion zone suitability: 1

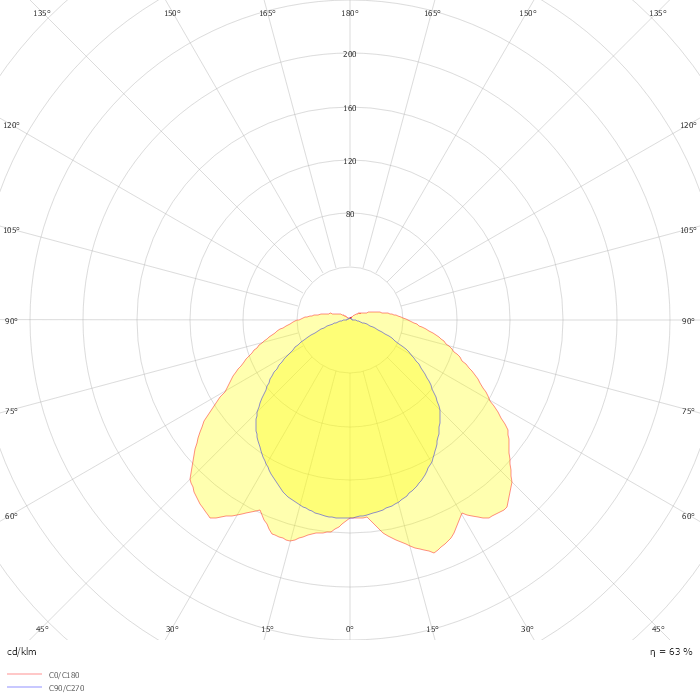

Photometric data

ZIP file

Download file
