Product data sheet

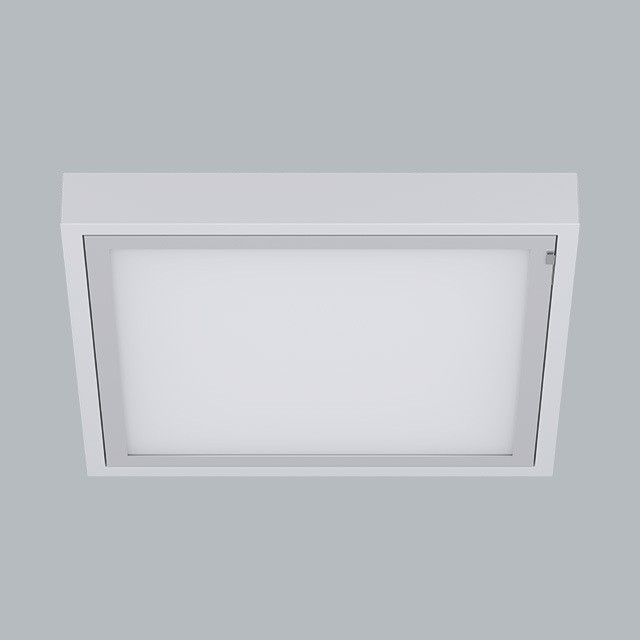

RUBIN CLEAN LED 3900 SHM EDD IP65 34 840 / 620X620MM
19.4064.3123.34
LUXIONA
Indoor luminaire. Assembly: surface mounted on ceiling. The body material is steel sheet. Colour - RAL 9016 (white). Dimensions: 620 x 620 x 78 mm. Diffuser: SHM (hardened mat glass). The efficiency of the optical system is 79,10%. Beam angle: (C0-C180) / (C90-C270) - 109,6° / 109,6°. Light source type: LED. Colour of the light 4000 K. SDCM=3. CRI>80. Lifetime of LED sources: 100000 h L80/B10. Luminaire luminous flux: 3170 lm. Power of luminaire: 20,8 W. Luminaire's light efficiency: 152,4 lm/W. Driver: DIM DALI (EDD). Voltage 220..240 V, 50..60 Hz. Power factor cosφ: >0,95. Circuit load capacity: 17 (B10), 28 (B16), 26 (C10), 41 (C16). Operating temperature range: 5 ÷ 30° C. Protection degree: IP65. Impact resistant: IK08. Protection against electric shock: I. Photobiological risk class (IEC/EN 62471): RG0.
Mounting mode
Ceiling mounted
Shape and measurements
Length: 24.41 in
Width: 24.41 in
Height: 3.07 in
Adjustability
Fixed
Design
Color of housing: White
Electric
System power: 20.8 W
Controller: DALI
Appliance Class: I
Protection
IP: 65
IK: 08
Other operating numbers
Ambient temperature range: 41...86°F

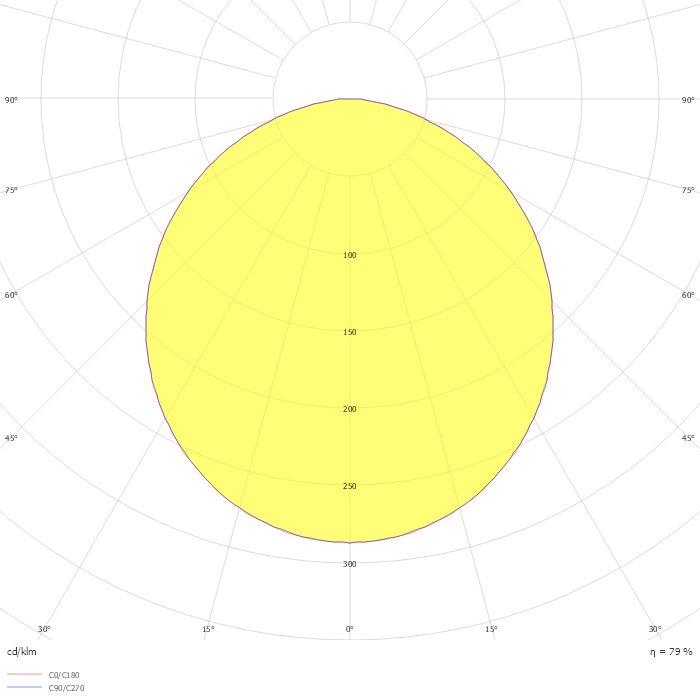

Photometric data
ZIP file
