Product data sheet

MERCMASTER LED  Gen3 13500 LUMEN NEMA TYPE III 3000 K CCT

I/MLGWH33WD3

Appleton (Emerson EGS)

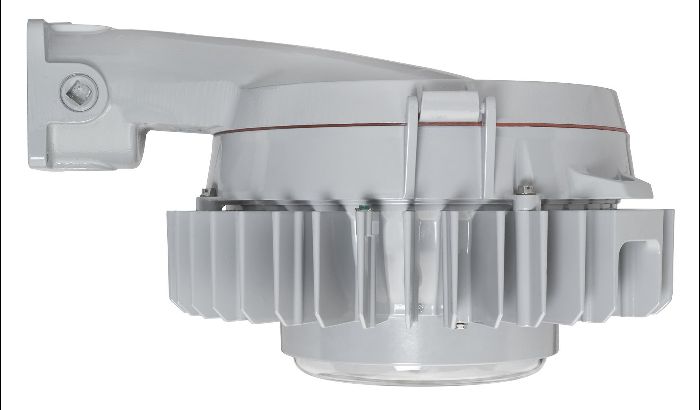

Product image 1: MERCMASTER LED  Gen3 13500 LUMEN NEMA TYPE III 3000 K CCT
Product image 1: MERCMASTER LED  Gen3 13500 LUMEN NEMA TYPE III 3000 K CCT

Product image 1: MERCMASTER LED  Gen3 13500 LUMEN NEMA TYPE III 3000 K CCT



IP
67

IK
08

Mercmaster LED Gen 3 Wall Mount 3/4" NPT Hub Diffused Polycarbonate Globe NEMA Type III 3000 K CCT/ 80 CRI Voltage- BU-120-277V, 50/60Hz, 125-300 Vdc BH-347-480 Vac, 50/60Hz Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC Zone 21, AEx tb IIIC Class I, Zone 2,Ex ec IIC Class II, Division 1, Group E, F, G Zone 20, Group IIIC Class II, Division 2, Group F, G Class III Simultaneous Exposure Type 3R,4, 4X IP66/ IP67 IK08 Suitable for Use in Wet Locations Marine Outside… [more]

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 113.9 W 11757 lm 103 lm/W 3114 K 80
MERCMASTER LED  Gen3 13500 LUMEN NEMA TYPE III 3000 K CCT

MERCMASTER LED  Gen3 13500 LUMEN NEMA TYPE III 3000 K CCT

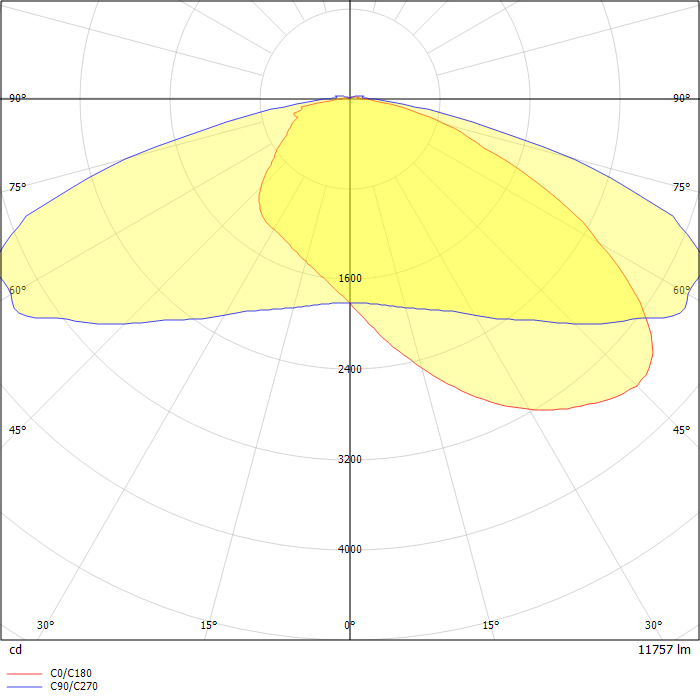

Light output 1 (integrated)

LED

LOR:100%
Total power:113.9 W

Mounting mode

Wall mounted

Shape and measurements

Height: 7.50 in

Diameter: 7.50 in

Adjustability

Fixed

Electric

System power: 113.9 W

Appliance Class: II

Protection

IP: 67

IK: 08

Explosion zone suitability: 2, 20, 21
