Product data sheet

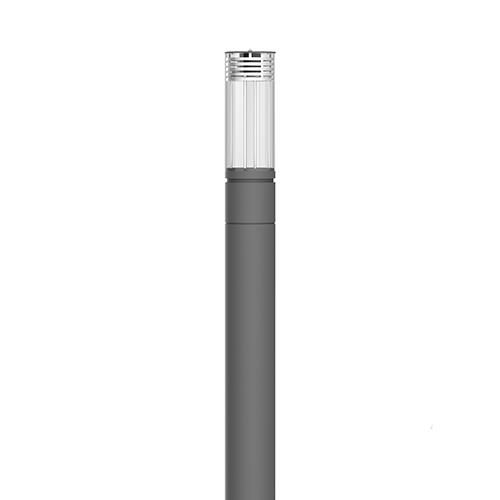

LIGHT COLUMN RESIDENZA C 3000K
10.00944.4600VXXX
hess
Cylindrical illuminating column made of aluminium. Protective cover made of aluminium. Luminaire rests on four aluminium rods, concealed by a design sheet. Trapezoidal luminaire body made of cast aluminium. Luminaire enclosure made of PMMA, clear.
| Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| 1 x LED | 20 W | 2072 lm | 104 lm/W | 3000 K | 80 |
| 1 x LED | 28 W | 3106 lm | 111 lm/W | 3000 K | 80 |
| 1 x LED | 28 W | 3098 lm | 111 lm/W | 3000 K | 80 |
| 1 x LED | 28 W | 3037 lm | 108 lm/W | 3000 K | 80 |
| 1 x LED | 28 W | 3209 lm | 115 lm/W | 3000 K | 80 |
| 1 x LED | 28 W | 3087 lm | 110 lm/W | 3000 K | 80 |
| 1 x LED | 28 W | 3462 lm | 124 lm/W | 3000 K | 80 |
| 1 x LED | 28 W | 2841 lm | 101 lm/W | 3000 K | 80 |
| 1 x LED | 20 W | 2160 lm | 108 lm/W | 3000 K | 80 |
| 1 x LED | 28 W | 3093 lm | 110 lm/W | 3000 K | 80 |
| 1 x LED | 15 W | 1629 lm | 109 lm/W | 3000 K | 80 |
| 1 x LED | 15 W | 1488 lm | 99 lm/W | 3000 K | 80 |
| 1 x LED | 20 W | 2200 lm | 110 lm/W | 3000 K | 80 |
| 1 x LED | 20 W | 2339 lm | 117 lm/W | 3000 K | 80 |
| 1 x LED | 20 W | 2331 lm | 117 lm/W | 3000 K | 80 |
| 1 x LED | 20 W | 2413 lm | 121 lm/W | 3000 K | 80 |
| 1 x LED | 20 W | 2327 lm | 116 lm/W | 3000 K | 80 |
| 1 x LED | 15 W | 1631 lm | 109 lm/W | 3000 K | 80 |
| 1 x LED | 20 W | 2330 lm | 116 lm/W | 3000 K | 80 |
| 1 x LED | 15 W | 1868 lm | 125 lm/W | 3000 K | 80 |
| 1 x LED | 15 W | 1552 lm | 103 lm/W | 3000 K | 80 |
| 1 x LED | 15 W | 1580 lm | 105 lm/W | 3000 K | 80 |
| 1 x LED | 15 W | 1637 lm | 109 lm/W | 3000 K | 80 |
| 1 x LED | 15 W | 1632 lm | 109 lm/W | 3000 K | 80 |
| 1 x LED | 15 W | 1689 lm | 113 lm/W | 3000 K | 80 |
| 1 x LED | 20 W | 2483 lm | 124 lm/W | 3000 K | 80 |
| 1 x LED | 28 W | 2961 lm | 106 lm/W | 3000 K | 80 |
| 1 x LED | 28 W | 3015 lm | 108 lm/W | 3000 K | 80 |
Mounting mode
Standing / Bollard, Pole top mounted
Shape and measurements
Length: 10.76 in
Width: 10.76 in
Height: 183.38 in
Adjustability
Fixed
Electric
System power: 15-28 W
Protection
IP: 65

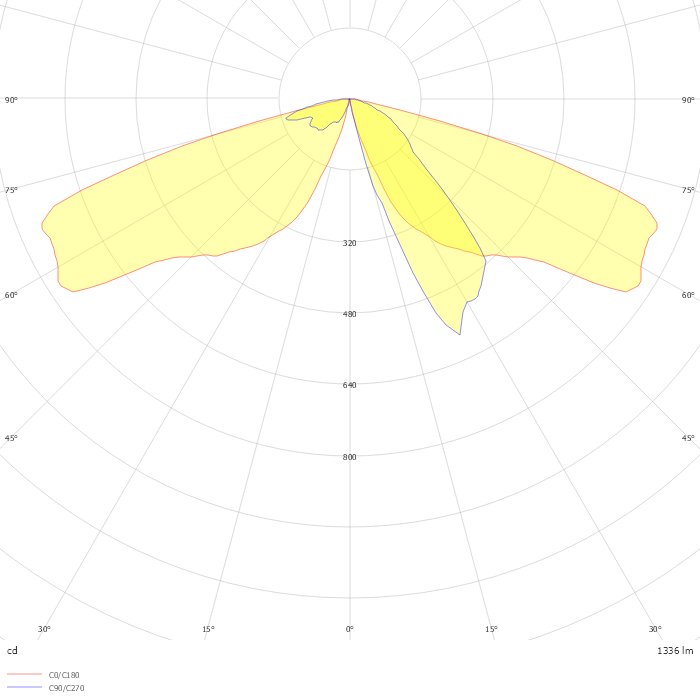

Photometric data
ZIP file
