Product data sheet

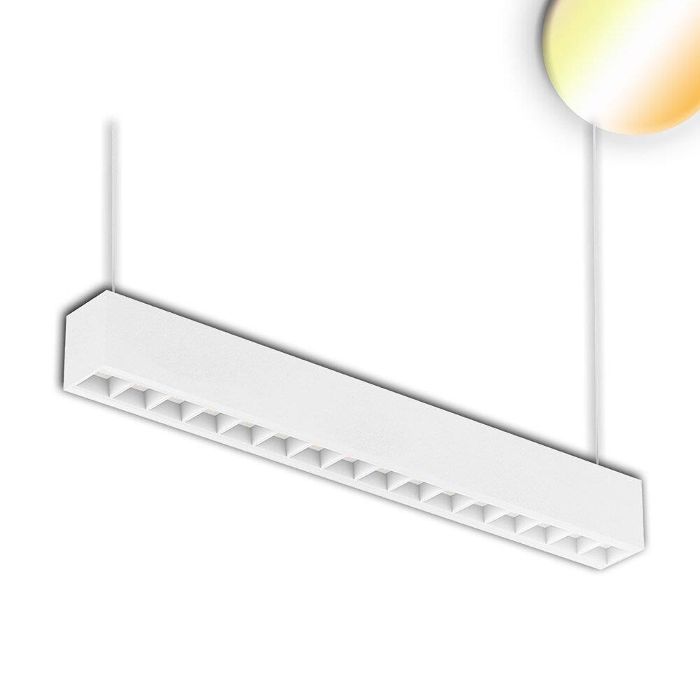

LED Surface mounted/hanging light linear Grid 20W, stackable, white, ColorSwitch 3000|3500|4000K
114060
ISOLED
IP
20
LED surface-mounted/pendant light Linear louvre 20W, bayable, white, ColorSwitch 3000|3500|4000K | Dimensioned wattage: 20 W | Effective wattage: 20 W | Energy efficiency class: E (EU 2019/2015) | Nominal Voltage: 220 - 240 V AC | Material: PC/aluminum | Surface color: white | Protection class: IP20 | Suitable for indoor use only | Allowable ambient Temperatures: -20° - 40° C | Beam angle: 100° fixed | Color temperature: 3000K - 4000K | Color rendering index: 85 (Ra 1-8) | Luminous flux: 2000 lm | Usable life: 70000 h (L80|B50) | Warranty: 2 years | | FABRICATION: ISOLED 114060
Mounting mode
Pendant, Ceiling mounted
Shape and measurements
Length: 23.78 in
Width: 2.36 in
Height: 2.76 in
Adjustability
Height adjustable
Design
Material impression: Aluminum, Plastic
Color of housing: White
Electric
System power: 20 W
Ballast: ECG
Integrated Switch: In housing
Protection
IP: 20
Designation labels: CE
Other operating numbers
Ambient temperature range: -4...104°F
Photometric data
ZIP file
