LED ECO Streetlight is a reliable LED street light for residential applications. The range consists three housing sizes for different wattages, with dust-free and cost effective design. The range has two levels of system efficacy, 100lm/W and 120lm/W, for different needs. Its high grade aluminum housing ensures reliable operation, high quality PC lens provides effective lighting distribution. This street light range is ideal for residential lighting purpose.Slim, aesthetical housing combined with dust-free design. Available in 30w/50w/70W for 100lm/w range, and 30W/45W/60W for 120lm/W range. Easy connection by providing pre-wired 0.5m cable. Precise lens design provides uniform and less glare lighting. High grade aluminum housing ensures reliable operation. Surge protection rated up to 10 KV (L-N), with replaceable SPD. Lifetime 50000 hours. IP66, IK08. CB, RoHS available.
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 70 W | 7000 lm | 100 lm/W | 6800 K | 80 |
Mounting mode
Pole top mounted
Shape and measurements
Length: 7.87 in
Width: 3.94 in
Height: 0.39 in
Adjustability
Fixed
Electric
System power: 70 W
Protection
IP: 66
IK: 08

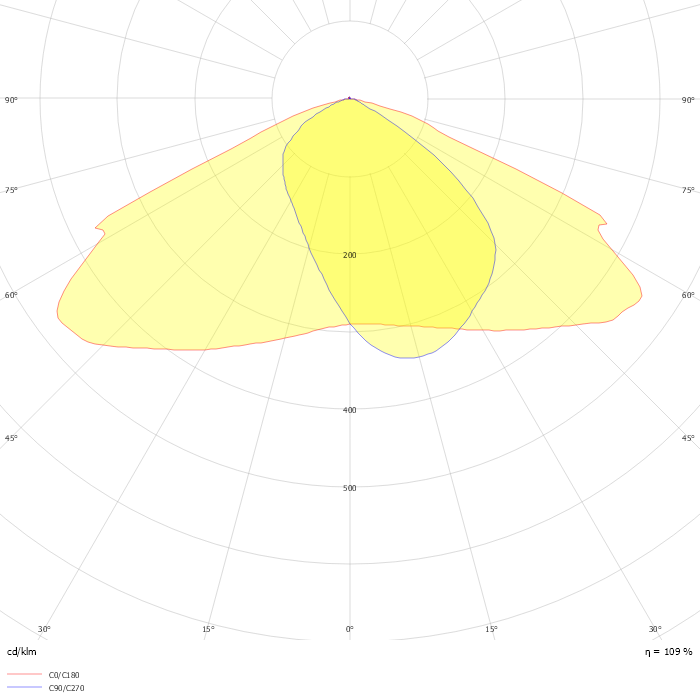

Photometric data
ZIP file
