Product data sheet

UNI-BRIGHT Infinity LED Panel 6262 DALI - NW

LP626241DA

Proled (MBN GmbH)

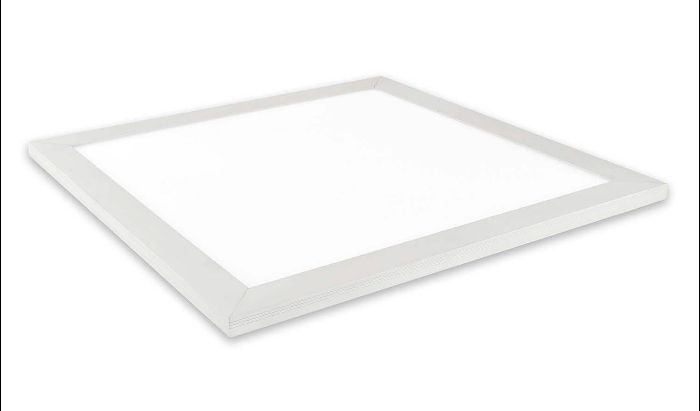

Product image 1: UNI-BRIGHT Infinity LED Panel 6262 DALI - NW
Product image 1: UNI-BRIGHT Infinity LED Panel 6262 DALI - NW

Product image 1: UNI-BRIGHT Infinity LED Panel 6262 DALI - NW



IP
40

IK
06

LED panel with prismatic acrylic diffuser plate for uniform light distribution with low glare. - For grid ceilings 625 mm x 625 mm

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 42 W 4200 lm 100 lm/W 4000 K 80
UNI-BRIGHT Infinity LED Panel 6262 DALI - NW

UNI-BRIGHT Infinity LED Panel 6262 DALI - NW

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted, Pendant

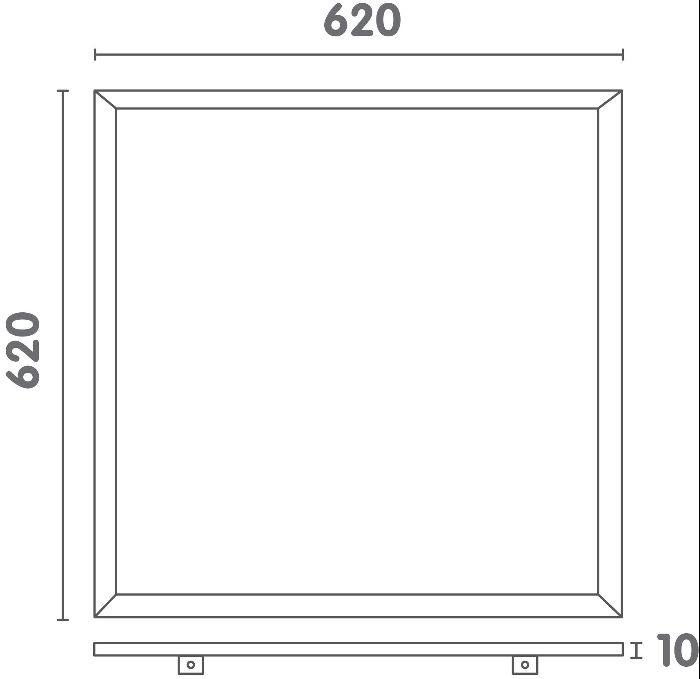

Shape and measurements

Length: 24.41 in

Width: 24.41 in

Height: 0.39 in

Weight: 3.1 kg

Adjustability

Fixed

Glare protection

Glare protection: UGR < 19

Electric

System power: 42 W

Appliance Class: II

Protection

IP: 40

IK: 06

Other operating numbers

Ambient temperature range: 14...113°F

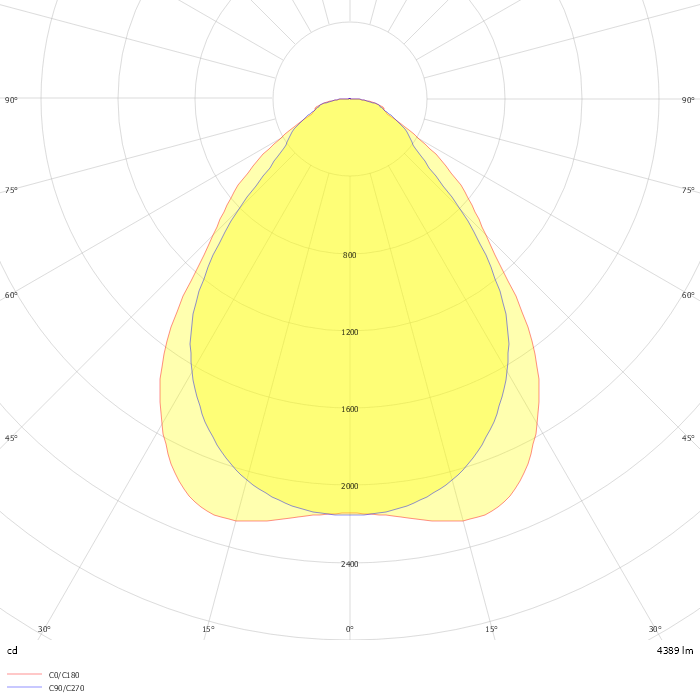

Photometric data

ZIP file

Download file
