Product data sheet

Disc 480 TW White 3290lm (@2700K) 2700-6500K Ra>80 Tunable White DALI Type 8

7021986060096

SG Armaturen

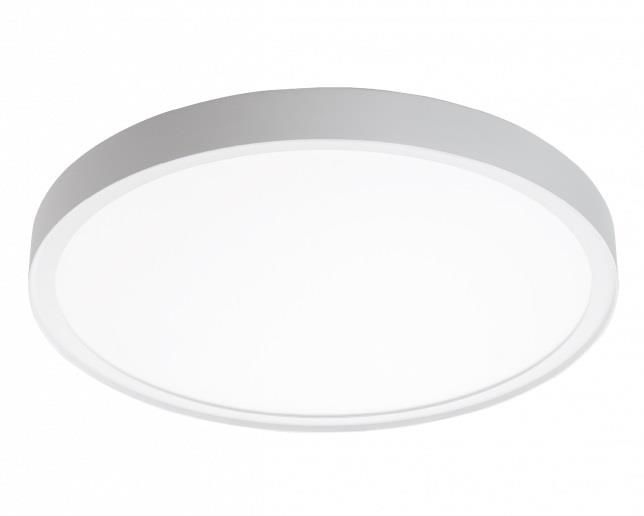

Product image 1: Disc 480 TW White 3290lm (@2700K) 2700-6500K Ra>80 Tunable White DALI Type 8
Product image 1: Disc 480 TW White 3290lm (@2700K) 2700-6500K Ra>80 Tunable White DALI Type 8

Product image 1: Disc 480 TW White 3290lm (@2700K) 2700-6500K Ra>80 Tunable White DALI Type 8



IP
20

IK
10

Energy efficient surface-mounted LED luminaire with a slim profile ensuring a modern look. Square and round available in multiple sizes and lumens. Prismatic diffuser provides a glare-free light. The luminaire is produced in a matt black or white powder-coated aluminium finish. Simple installation with quick connections between fixture and back plate that can be screwed straight onto all known ceiling boxes. Visible cabling also possible. Tunable White LEDDim or DALI Type 8. Light distribution Direct Light technic LED (not exchangeable) 36W 2700-6500K Ra>80 SDCM 3 L80/B20 >100,000 hrs L90 >50,000 hrs Control/Dimming Tunable White DALI Type 8 Protection Class II IP20 IK10 Materials and finish Housing: Aluminium Colour: White Optics: PMMA (Acrylate) Mounting/Connection Surface, Indoor Screwless terminal block Max. luminaires per circuit breaker: B10: 10, B16: 16, C10: 16, C16: 26

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 36 W 3290 lm 91 lm/W 2700 K 80

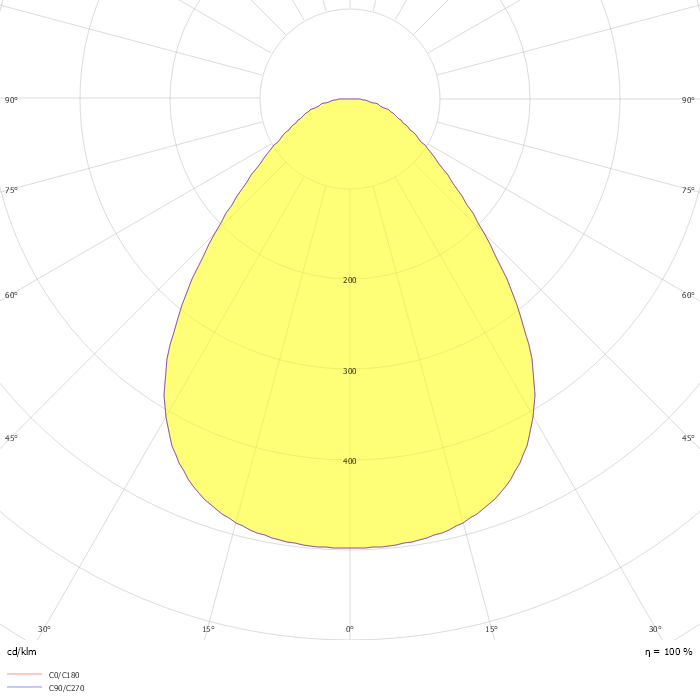

Disc 480 TW White 3290lm (@2700K) 2700-6500K Ra>80 Tunable White DALI Type 8

Disc 480 TW White 3290lm (@2700K) 2700-6500K Ra>80 Tunable White DALI Type 8

Light output 1

1 x LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 18.50 in

Width: 18.50 in

Height: 2.15 in

Adjustability

Fixed

Electric

System power: 36 W

Color adjustable

Appliance Class: II

Protection

IP: 20

IK: 10

Photometric data

ZIP file
