Product data sheet

ARB Arbor Post Top

ARB-B1-LED-D1-T3-7030

Cooper Lighting

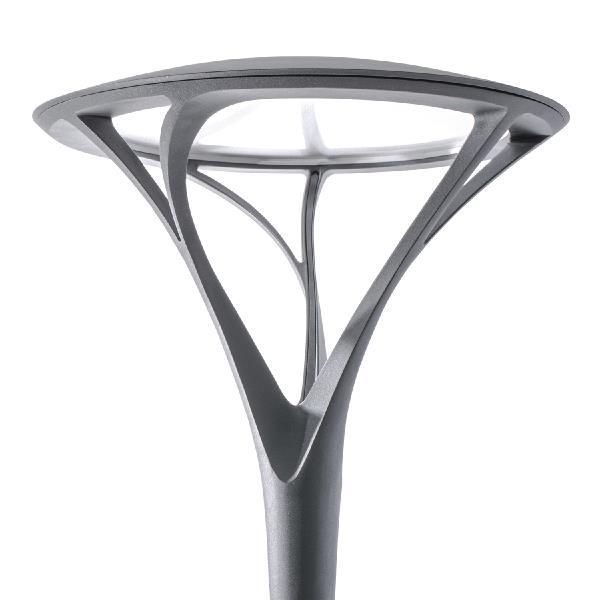

Product image 1: ARB Arbor Post Top
Product image 1: ARB Arbor Post Top

Product image 1: ARB Arbor Post Top



IP
47

Low copper content two piece aluminum housing, WaveStream LED optics, Type II, III and IV asymmetric and type V symmetric NEMA distributions, Up to 105 Lms/W, 4000K @ 70 CRI standard, 3000K @70 CRI and 80 CRI optional, IP66 rated housing, 3G vibration rated (post top) and 1.5G (single/twin pole accessories), Wall mount accessories available

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 24 W 2151 lm 90 lm/W 3000 K 70
ARB Arbor Post Top

ARB Arbor Post Top

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Height: 0.39 in

Diameter: 19.50 in

Adjustability

Fixed

Electric

System power: 24 W

Protection

IP: 47

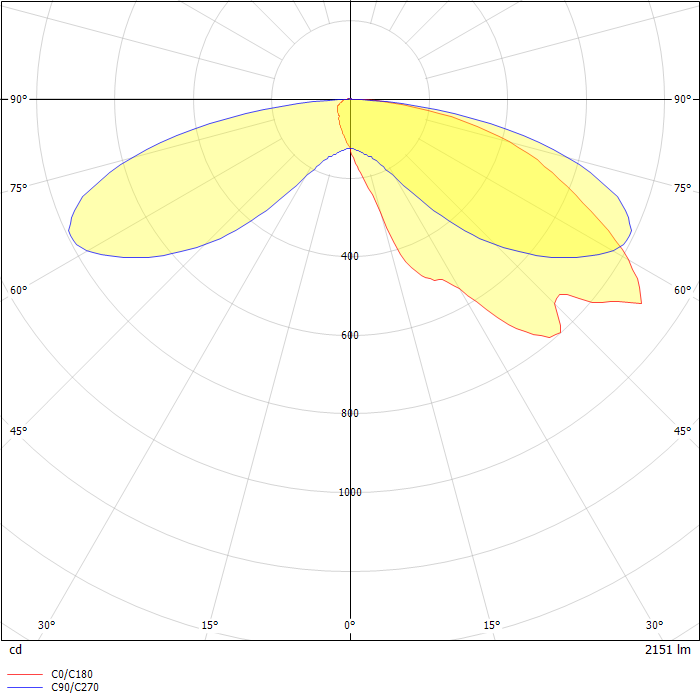

Photometric data

ZIP file

Download file
