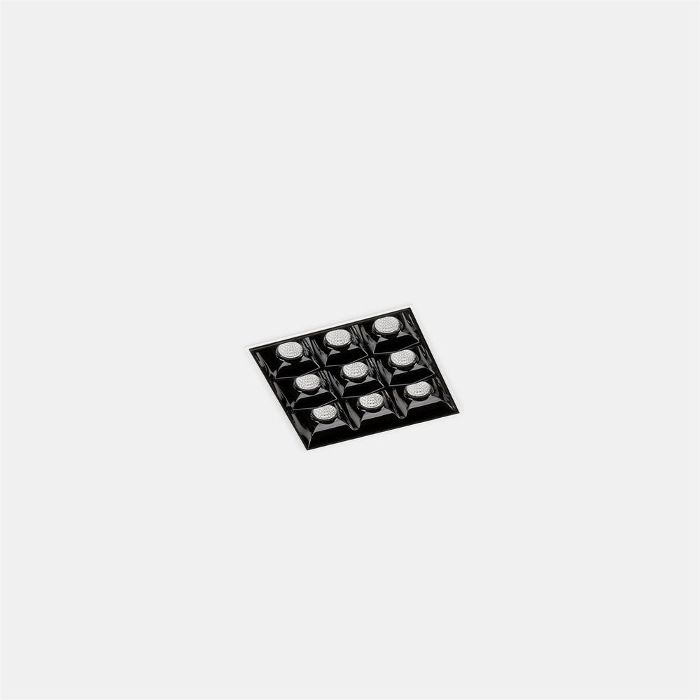

LedsC4 Bento Standard Square Trimless 90-6359-14-60V3 Downlight for indoor use. Structure material: Aluminium, Polycarbonate. Structure finish: White, Black. Warranty: 5 Years. Product net weight (Kg): 0.5 Product length (mm): 162 Product width or diameter (mm): 94 Product height (mm): 55 Ø of the hole for recessing (mm): 95x95 Permitted ceiling thickness: 0-18 Class 3. Luminaire not suitable for coating with insulation materials. Glow wire test: 850. IP: IP23. LED. No. of lampholders or LEDs: 1. LED brand: SAMSUNG. Maximum power of light source: 18.3W. Colour temperature: 3000K. Colour rendering index: 90. MacAdam Steps: 3. Hours of life: 50.000h L80B20. UGR: 7.9. Photobiological risk: RG1. Real flux (lm): 1848. Real lm/W: 101. Voltage: 3. Equipment included: No, but it is needed. Total power: 18.3.
| Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| 1 x LED | 18.3 W | 1848 lm | 101 lm/W | 3000 K | 90 |
Mounting mode
Ceiling recessed
Shape and measurements
Length: 3.54 in
Width: 3.54 in
Height: 0.08 in
Adjustability
Fixed
Electric
System power: 18.3 W
Appliance Class: III
Protection
IP: 23
Designation labels: CE

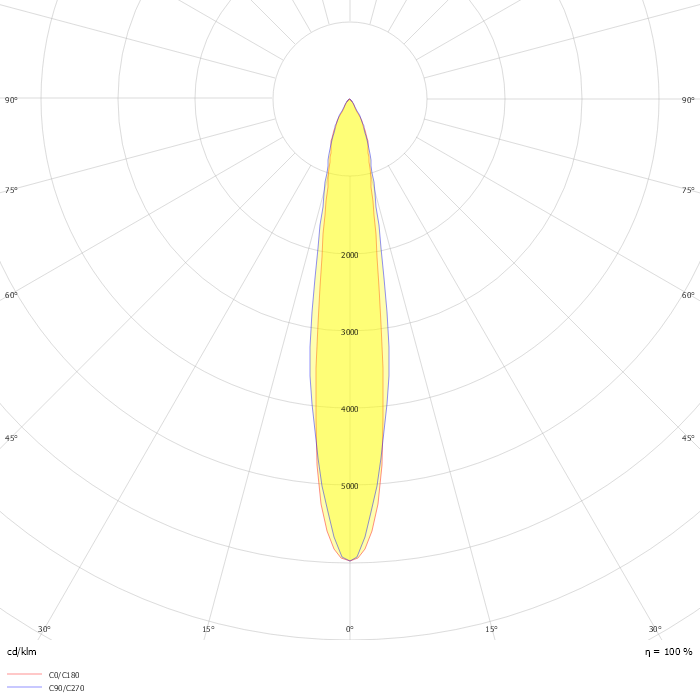

Photometric data
ZIP file
