Product data sheet

Vercle Lineal 500mm

55-E119-05-CL

LedsC4

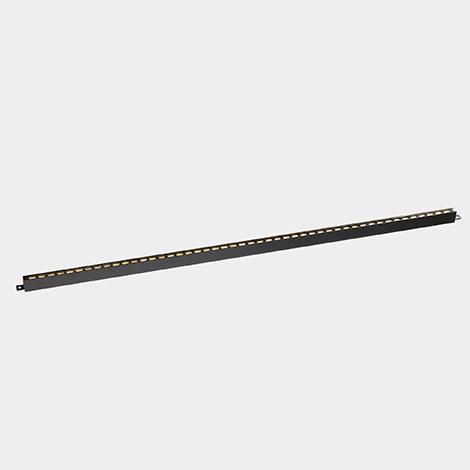

LedsC4 Vercle Lineal 500mm 55-E119-05-CLV2 Lineal lighting system for outdoor use. Includes 2 cable outlets to facilitate chain mounting. Structure material: Aluminium. Structure finish: Black. Diffuser material: Resina. Diffuser finish: Transparent. Warranty: 5 Years. Product net weight (Kg): 0.24 Product length (mm): 500 Product width or diameter (mm): 10 Product height (mm): 17 Class 3. IP: IP65-IP67. IK: IK10. LED. No. of lampholders or LEDs: 1. Maximum power of light source: 10.3W. Colour temperature: 3000K. Colour rendering index: 80. MacAdam Steps: 3. Hours of life: 50.000h L80B20. UGR: 16.5. Photobiological risk: RG1. Real flux (lm): 229. Real lm/W: 22. Voltage: 3. Equipment included: No, but it is needed. Total power: 10.3.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 12.5 W 229 lm 18 lm/W 3000 K 80
Vercle Lineal 500mm

Vercle Lineal 500mm

Light output 1

1 x LED

Mounting mode

Ceiling mounted, Standing / Bollard

Shape and measurements

Length: 0.39 in

Width: 19.69 in

Height: 0.67 in

Adjustability

Fixed

Electric

System power: 12.5 W

Appliance Class: III

Protection

IP: 67

IK: 10

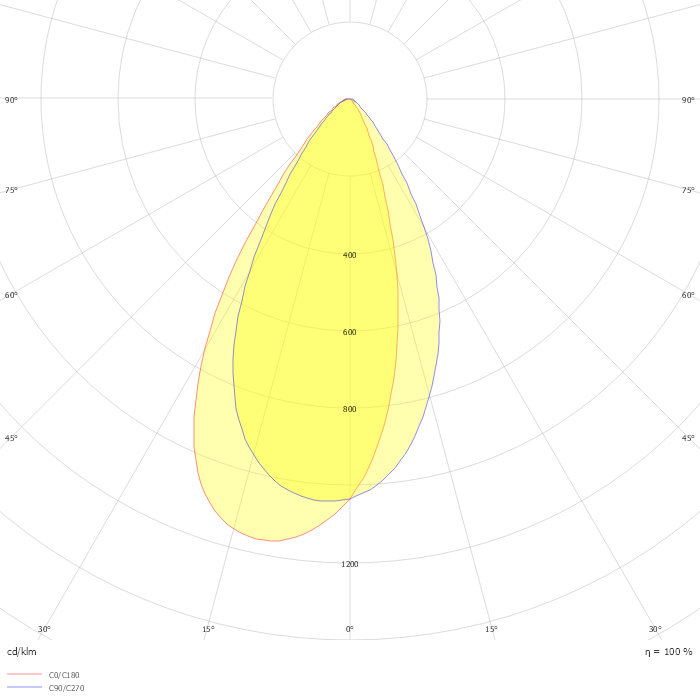

Photometric data

ZIP file
