Product data sheet

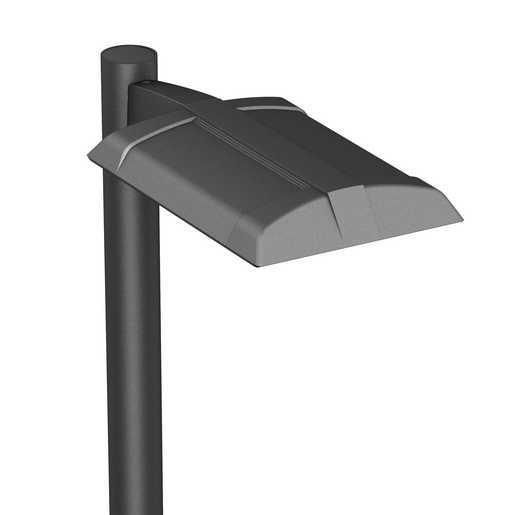

ALT2-100L-160-35K8-5W-CLR
Current
The ALTITUDE® is the ultimate in luminaire design innovation. The low-profile housing is proportional and scalable with sizes to cover pedestrian/site/roadway environmentsThree Sizes for maximum flexibility to cover more applications, IP66 Certified, Nine IES distribution patterns, Three Lens options: no lens, clear and diffuse for visual comfort, NX wired and wireless integrated control system, 70, 80 and 90 CRI are available,
Mounting mode
Pole integrated
Shape and measurements
Length: 12.95 in
Width: 12.95 in
Height: 3.94 in
Adjustability
Fixed
Design
Color of housing: Silver gray, White, Black, Gold, Green, Anthracite / graphite
Electric
System power: 158 W
Protection
IP: 66

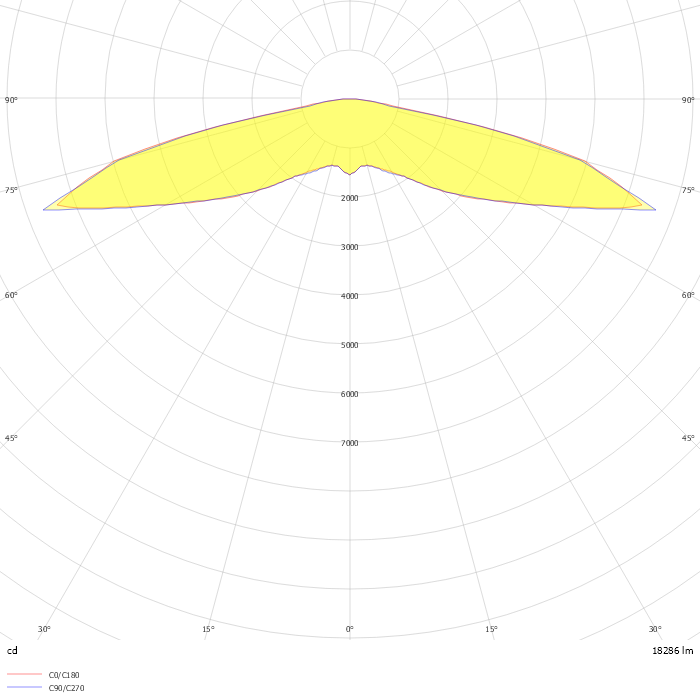

Photometric data
ZIP file
