Product data sheet

Beam Pendant (Red)

8151507

Zero

Product image 1: Beam Pendant (Red)
Product image 1: Beam Pendant (Red)

Product image 1: Beam Pendant (Red)



IP
20

Ceiling with pendant tube. Other lengths possible on request. Painted aluminium and metal. Adjustable shade for indirect light. Terminal block 5x4mm2. Two cable entries. Finish: White-, black- or red (NCS 1580-Y90R) painted aluminum and metal. Adjustable shade for indirect light. Installation: Ceiling with pendant tube. Other lengths possible on request. LED info: System power: 14W. Luminaire Luminous Flux: 1008LM. CCT 3000K. SDCM 3. CRI 80. Connection: Terminal block 5x4 mm2 Two entry holes.. Design: Johan Carpner 2010.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 17 W 1008 lm 59 lm/W 3000 K 80
Beam Pendant (Red)

Beam Pendant (Red)

Light output 1 (integrated)

LED

Mounting mode

Pendant

Shape and measurements

Length: 19.66 in

Width: 19.66 in

Height: 31.45 in

Adjustability

Fixed, Rotatable

Electric

System power: 17 W

Controller: DALI

Suitable for feed-through wiring

Appliance Class: I

Protection

IP: 20

Designation labels: CE

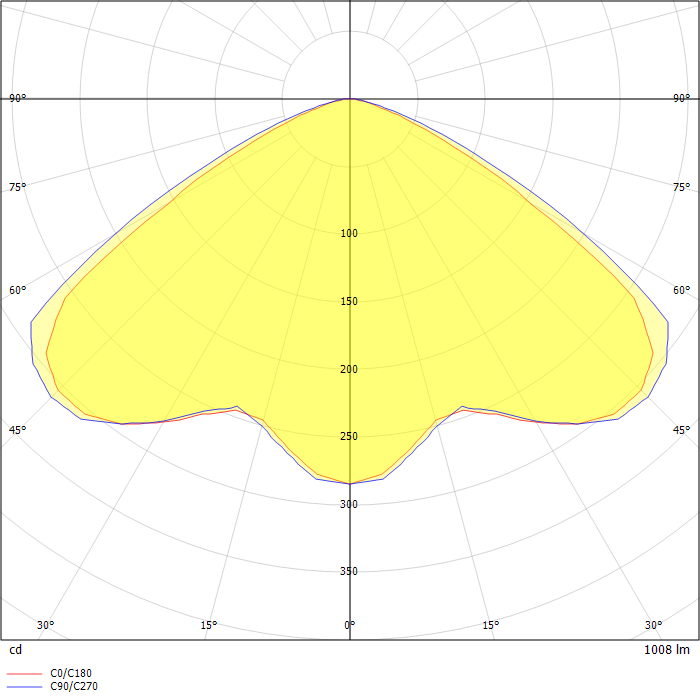

Photometric data

ZIP file

Download file
