Product data sheet

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

10.00232.0V0XX + 10.20200.8000V00X

hess

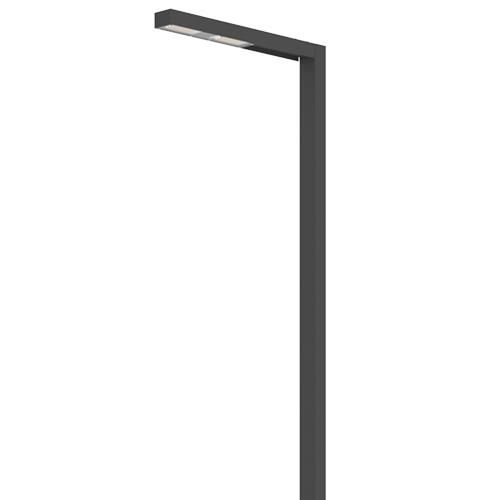

Product image 1: PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K
Product image 1: PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Product image 1: PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K



IP
65

Luminaire with bracket LINEA-2 1500 Dimension 1500 mm x 160 mm x 105 mm Luminaire housing of extruded aluminium Luminaire cover of toughened safety glass (ESG), clear, with black printing To be opened via three slotted screws, replacement possible without tools. Easy maintenance of the electrical unit. Pole LINEA/LINEA-2 8000 single Galvanised steel section 120 x 160 mm LSH 8000 mm With inspection-door and C-rail for fuse-box

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 67 W 5937 lm 89 lm/W 1800 K 80
1 x LED 77 W 6566 lm 85 lm/W 1800 K 80
1 x LED 97 W 9705 lm 100 lm/W 1800 K 80
1 x LED 97 W 8083 lm 83 lm/W 1800 K 80
1 x LED 97 W 8276 lm 85 lm/W 1800 K 80
1 x LED 97 W 9742 lm 100 lm/W 1800 K 80
1 x LED 97 W 8319 lm 86 lm/W 1800 K 80
1 x LED 48 W 4466 lm 93 lm/W 1800 K 80
1 x LED 58 W 5083 lm 88 lm/W 1800 K 80
1 x LED 48 W 5257 lm 110 lm/W 1800 K 80
1 x LED 48 W 4489 lm 94 lm/W 1800 K 80
1 x LED 48 W 4685 lm 98 lm/W 1800 K 80
1 x LED 48 W 4361 lm 91 lm/W 1800 K 80
1 x LED 48 W 5236 lm 109 lm/W 1800 K 80
1 x LED 39 W 3578 lm 92 lm/W 1800 K 80
1 x LED 39 W 4211 lm 108 lm/W 1800 K 80
1 x LED 39 W 3596 lm 92 lm/W 1800 K 80
1 x LED 39 W 3753 lm 96 lm/W 1800 K 80
1 x LED 58 W 5458 lm 94 lm/W 1800 K 80
1 x LED 58 W 5231 lm 90 lm/W 1800 K 80
1 x LED 58 W 6124 lm 106 lm/W 1800 K 80
1 x LED 58 W 5204 lm 90 lm/W 1800 K 80
1 x LED 87 W 7546 lm 87 lm/W 1800 K 80
1 x LED 87 W 8881 lm 102 lm/W 1800 K 80
1 x LED 87 W 7584 lm 87 lm/W 1800 K 80
1 x LED 87 W 7913 lm 91 lm/W 1800 K 80
1 x LED 87 W 7369 lm 85 lm/W 1800 K 80
1 x LED 87 W 8847 lm 102 lm/W 1800 K 80
1 x LED 77 W 6723 lm 87 lm/W 1800 K 80
1 x LED 77 W 7912 lm 103 lm/W 1800 K 80
1 x LED 39 W 3494 lm 90 lm/W 1800 K 80
1 x LED 77 W 6757 lm 88 lm/W 1800 K 80
1 x LED 58 W 6101 lm 105 lm/W 1800 K 80
1 x LED 77 W 7883 lm 102 lm/W 1800 K 80
1 x LED 97 W 8680 lm 89 lm/W 1800 K 80
1 x LED 67 W 6988 lm 104 lm/W 1800 K 80
1 x LED 67 W 5967 lm 89 lm/W 1800 K 80
1 x LED 67 W 6226 lm 93 lm/W 1800 K 80
1 x LED 67 W 5797 lm 87 lm/W 1800 K 80
1 x LED 67 W 6962 lm 104 lm/W 1800 K 80
1 x LED 77 W 7051 lm 92 lm/W 1800 K 80
1 x LED 39 W 4195 lm 108 lm/W 1800 K 80
PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

PML WITH BRACKET LINEA-2 1500 - 8000 SINGLE 1800K

Light output 1

1 x LED

Mounting mode

Standing / Bollard, Pole integrated

Shape and measurements

Length: 62.70 in

Width: 6.30 in

Height: 315.20 in

Adjustability

Fixed

Electric

System power: 39-97 W

Protection

IP: 65

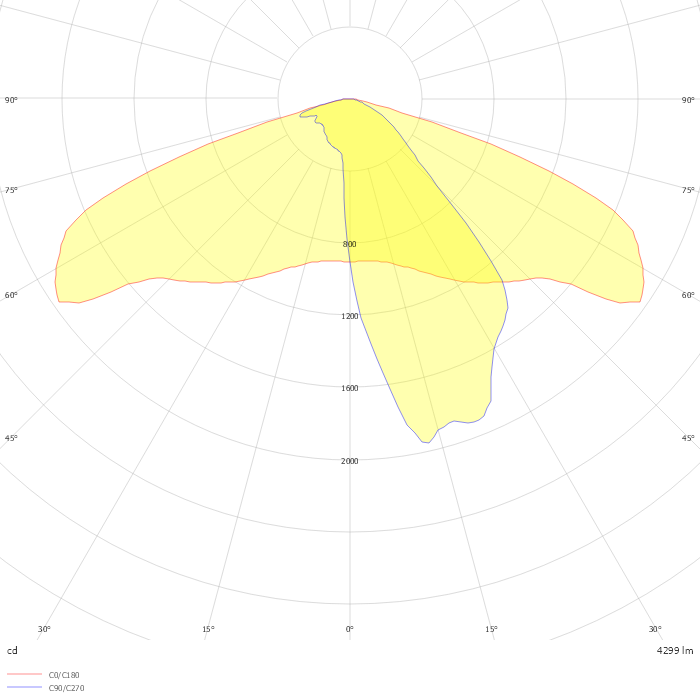

Photometric data

ZIP file

Download file
