Product data sheet

Linear lighting

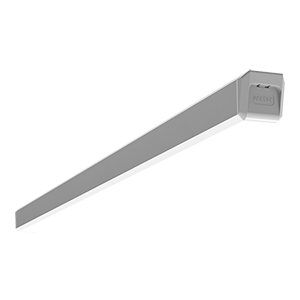

V1-R0-70385-05000-4005030 Q-40 1,2 m 50W 3000K

VARTON

• 40 mm wide luminaire made of extruded aluminum • diffuser with bevelled corners • Adjustable end-cap, allowing to change continuous line direction in 90° increments • External driver in protective case • Unified design with the Q-80 Application • Retail spaces • Offices • Corridors • Hospitality (restaurants, hotels, coffee bars) Installation • Surface-mounted • Suspended (optional) Power factor: 0,95 Input voltage (AC, 50Hz), V: 176...264 AC frequency, Hz: 50 Flicker, %: 1 Climatic modification and category of placement: УХЛ4 Color rendering index: 80-89 Protection class: I Mounting method: Surface mounting/hangable Ingress protection (IP): IP40 Radiation angle, °: 100 Impact resistance: IK01 https://www.varton.ru/products/lineynye-svetilniki-dlya-vnutrennego-osveshcheniya/q-40/q-40-1-2-m/svetodiodnyy-svetilnik-varton-q-40-podvesnoy-nakladnoy-50-vt-1207kh40kh40-mm-3000-k-ip40-s-rasseivat/

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 50 W 4900 lm 98 lm/W 3000 K 80
Linear lighting

Linear lighting

Light output 1

1 x LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 47.52 in

Width: 1.57 in

Height: 1.57 in

Adjustability

Fixed

Electric

System power: 50 W

Protection

IP: 40

IK: 01

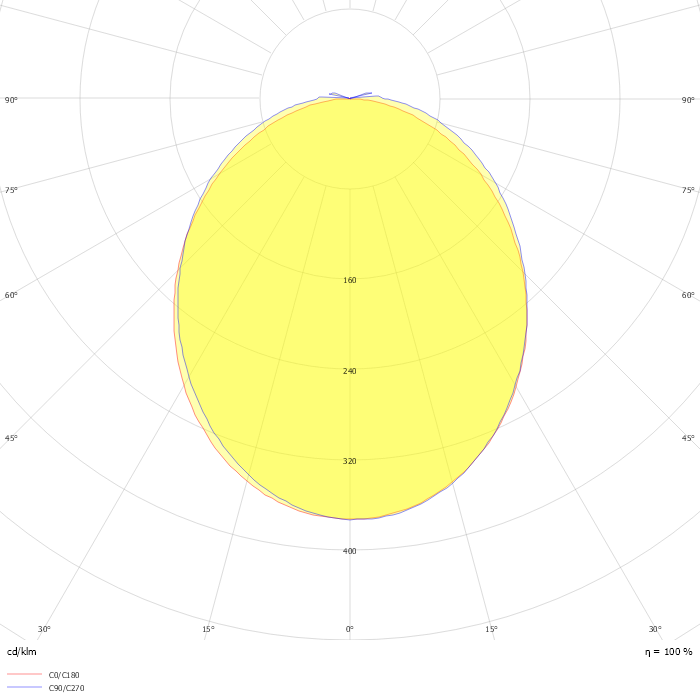

Photometric data

ZIP file
