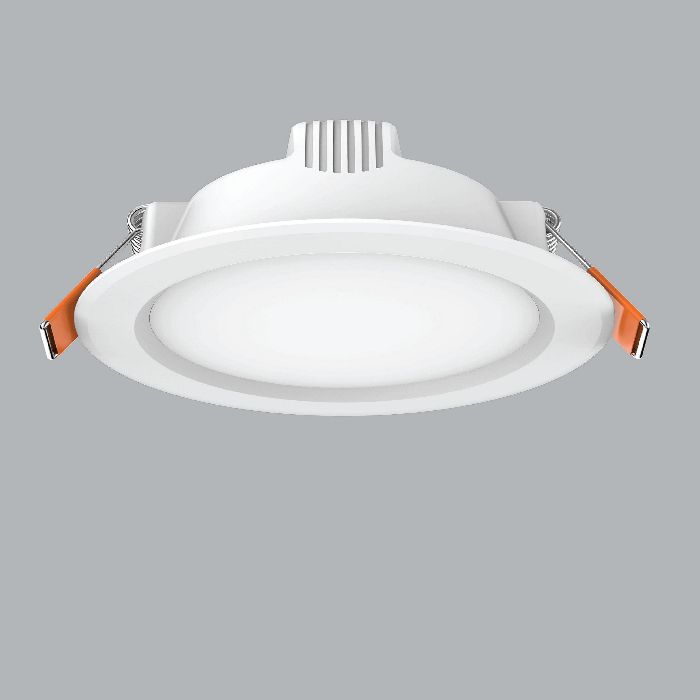

- Round shape - Recessed - mounted on ceiling or use additional SRDLE accessories for floating mounting - Driver is integrated inside the light. - The light has 3 color modes: Cool White-Warm White-Natural - Size: Ø122 x 50 mm - Cut out: Ø100mm - Voltage: 100-240VAC - Power: 9W - Power Factor (PF): >0.5 - Luminance: 900 lm - Color Temperature (CCT): 6500K/3000K/4000K - RA >80 High Color Rendering Index - Beam angle: 110◦ - Chip LED: SMD 2835 - Life Time: 30,000 hours - Instant Light: 0s - European Standard CE – RoHS
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
1 x LED Module | 9 W | 2700 lm | 300 lm/W | 82 |
Mounting mode
Ceiling recessed
Shape and measurements
Length: 4.41 in
Width: 4.84 in
Height: 1.97 in
Adjustability
Fixed
Electric
System power: 9 W
Protection
IP: 20

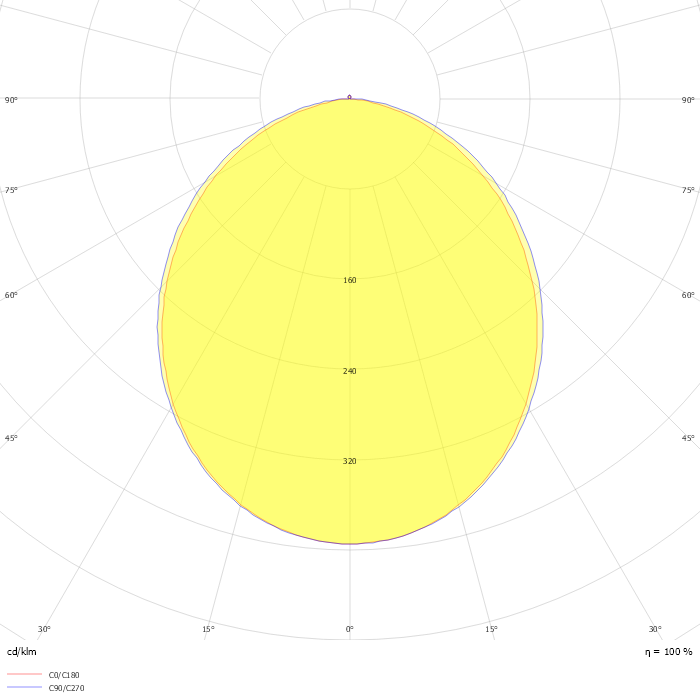

Photometric data
ZIP file
