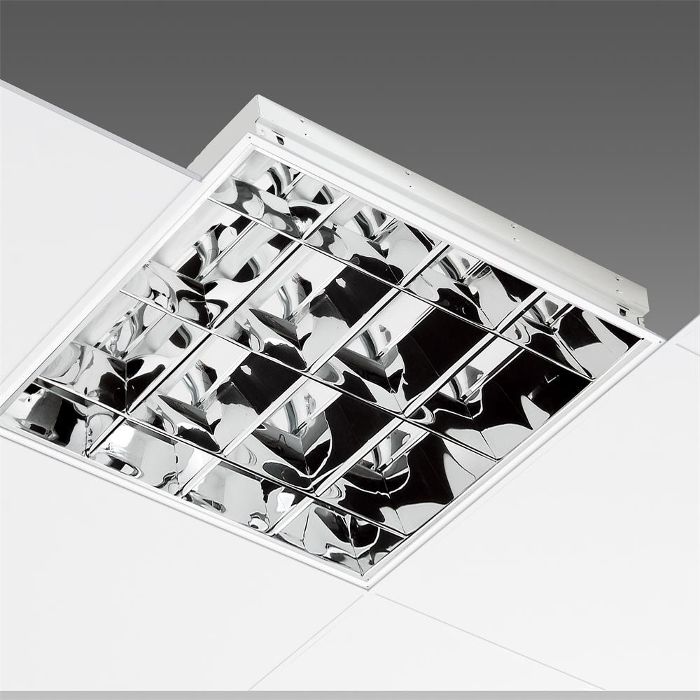

Housing: galvanised steel. Optics: dark light longitudinal and transversal double parabolic louvers, made of high-gloss, plated 99.85 aluminium, anti-dazzle and anti-iridescent, very low luminance, 65°. : UGR<lt/>19, according to standard EN 12464. Coating: pre-painted in oven with polyester resin, UV-stabilised, phosphate pre-treatment. Wiring: quick, no need to open the fixture. Low flicker: luminaire with very low flicker: evenly distributed light for greater visual safety. Photobiological risk: exempt risk group according to EN62471. : EN60598-1. With degree of protection according to EN60529. Equipment: - inspection door and terminal block for electricity connection. - Protective film. Mounting: recessed only surface mounting on max. 38mm T-beams.
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 37 W | 3990 lm | 108 lm/W | 4000 K | 80 |
Mounting mode
Ceiling recessed
Shape and measurements
Length: 23.31 in
Width: 23.46 in
Height: 3.54 in
Adjustability
Fixed
Design
Color of housing: White
Electric
System power: 37 W
Appliance Class: I
Protection
IP: 20
IK: 07
Designation labels: CE
Photometric data
ZIP file
