Product data sheet
Trio White 400lm 2700K Ra>80 Trailing edge dimming
7021986115246
SG Armaturen

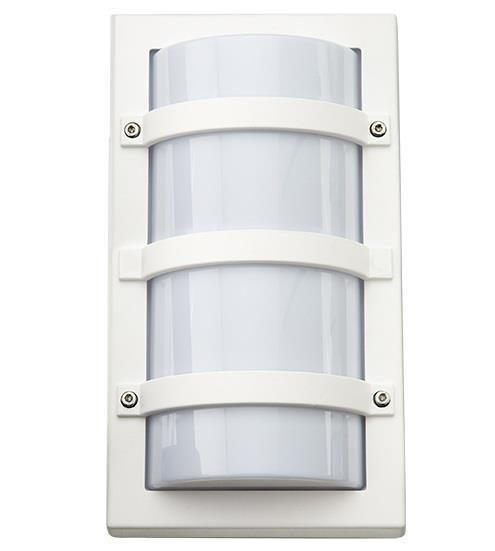

Square wall luminaire for extra protection of diffuser. Made of die-cast powder-coated aluminium. Diffuser made of UV-stabilised opal polycarbonate. Two inputs/outputs for cables, option of both visible and concealed cabling, and loopable quick clips. Corrosion-proof with 10-year warranty, IP65 and vandal-resistant rating IK10. Light distribution Direct Light technic LED 7W 2700K Ra>80 SDCM 3 L70/B50 >50,000 hrs Control/Dimming Trailing edge dimming Protection Class I IP65 IK10 Fire protection class: 850°C - 30s Materials and finish Housing: Aluminium Colour: White (RAL 9003) Optics: UV-stabilized polycarbonate Mounting/Connection Surface, Indoor / Outdoor Screwless terminal block Max. luminaires per circuit breaker: B10: 33, B16: 52, C10: 40, C16: 64
Mounting mode
Wall mounted
Shape and measurements
Length: 7.09 in
Width: 4.37 in
Height: 12.60 in
Adjustability
Fixed
Design
Color of housing: White
Electric
System power: 7 W
Appliance Class: I
Protection
IP: 65
IK: 10

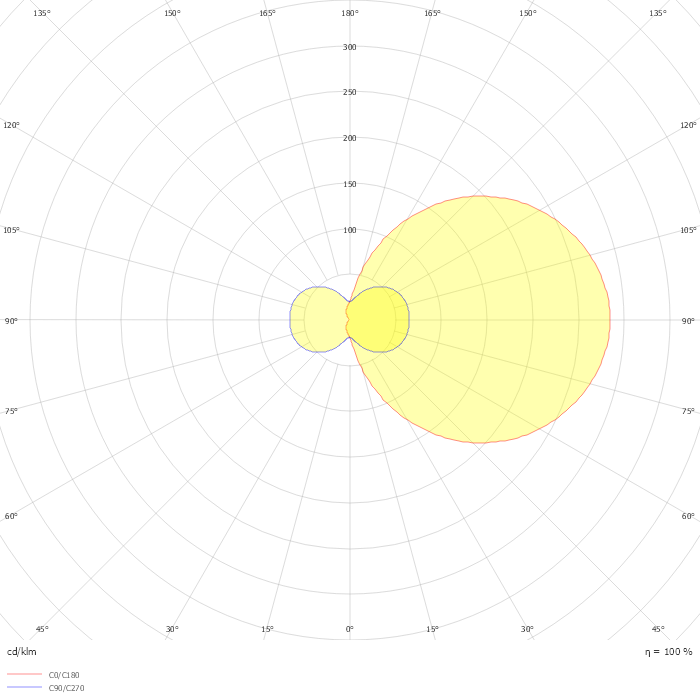

Photometric data
ZIP file
