Product data sheet

ProSite LED Floodlight 18000 Lumens, NEMA 4 Distribution, No Lens Cover

F1EN4B2Cxxxxxx

Dialight

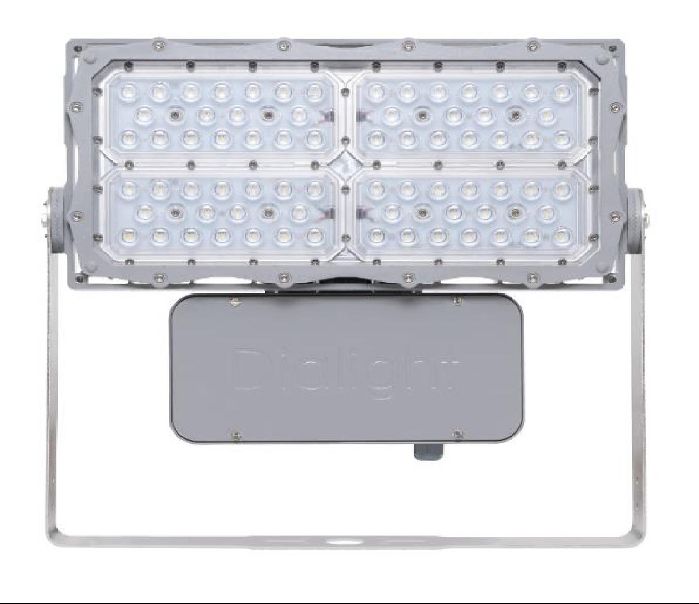

Product image 1: ProSite LED Floodlight 18000 Lumens, NEMA 4 Distribution, No Lens Cover
Product image 1: ProSite LED Floodlight 18000 Lumens, NEMA 4 Distribution, No Lens Cover

Product image 1: ProSite LED Floodlight 18000 Lumens, NEMA 4 Distribution, No Lens Cover



IP
66

IK
10

ProSite LED Floodlight 19,116 Lumens 124 Watts 120-277V AC / 120-250V DC Cool White, 70CRI Integrated Polycarbonate Optic/Lens No Lens Cover CE ENEC RCM IK10 NEMA 4 Distribution IP66/67 LM79 Tested IES File

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 124 W 19106 lm 154 lm/W 5181 K 86
ProSite LED Floodlight 18000 Lumens, NEMA 4 Distribution, No Lens Cover

ProSite LED Floodlight 18000 Lumens, NEMA 4 Distribution, No Lens Cover

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted, Pole top mounted

Shape and measurements

Length: 15.00 in

Width: 16.20 in

Height: 3.07 in

Adjustability

Rotatable, Tiltable

Electric

System power: 124 W

Appliance Class: I

Protection

IP: 66

IK: 10

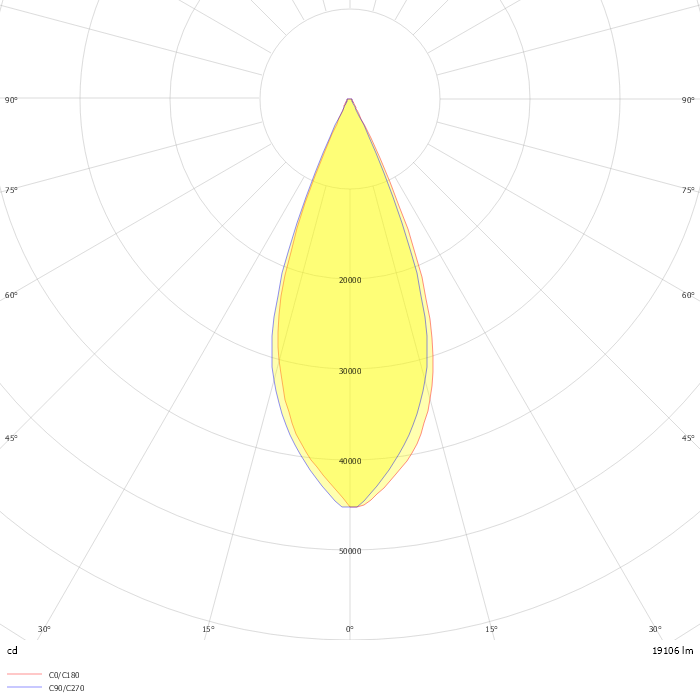

Photometric data

ZIP file

Download file
