Product data sheet

Arq - B2 - recessed - adjustable 3000K CRI 90 5W CLD-D-D White

22047115-1241

Disano

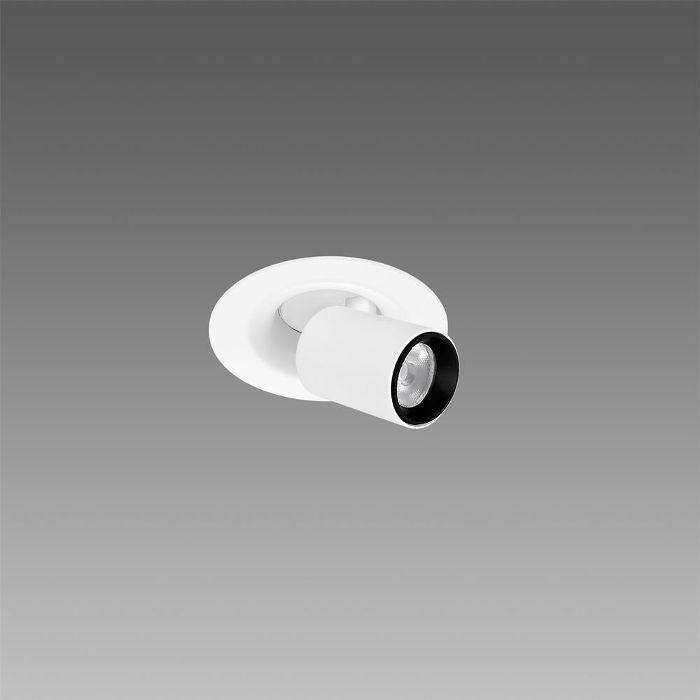

Product image 1: Arq - B2 - recessed - adjustable 3000K CRI 90 5W CLD-D-D White
Product image 1: Arq - B2 - recessed - adjustable 3000K CRI 90 5W CLD-D-D White

Product image 1: Arq - B2 - recessed - adjustable 3000K CRI 90 5W CLD-D-D White



IP
40

IK
07

Housing: adjustable angle, made of die-cast aluminium with spring clips for recessed mounting. Optics: in PMMA with high efficiency output and very low glare rate Coating: epoxy polyester powder coating resistant to UV rays. Low flicker: luminaire with very low flicker: evenly distributed light for greater visual safety. Photobiological risk: exempt risk group according to EN62471. : EN 60598-1. They have a degree of protection according to the EN 60529 standard.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 5 W 550 lm 110 lm/W 3000 K 90
Arq - B2 - recessed - adjustable 3000K CRI 90 5W CLD-D-D White

Arq - B2 - recessed - adjustable 3000K CRI 90 5W CLD-D-D White

Light output 1

1 x LED

Mounting mode

Ceiling recessed

Shape and measurements

Height: 2.95 in

Diameter: 3.35 in

Adjustability

Fixed

Design

Color of housing: White

Electric

System power: 5 W

Appliance Class: II

Protection

IP: 40

IK: 07

Designation labels: CE

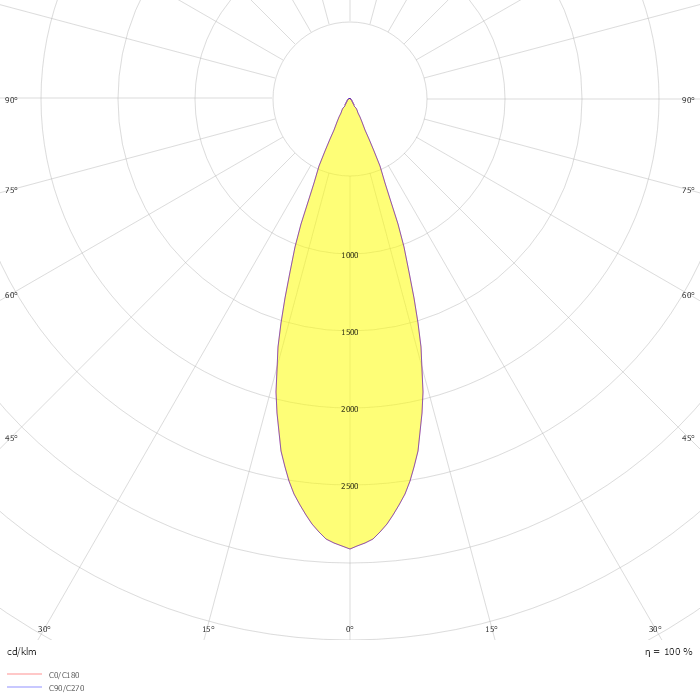

Photometric data

ZIP file

Download file
