Produktdatenblatt

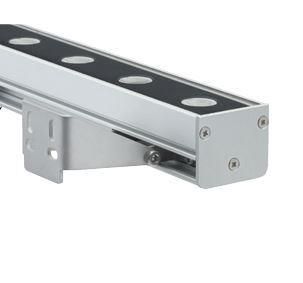

LD38 5.1W 500mA WB AWB-50

LD38-C1-500-LW30-100-WB-AWB-50-300

LightGraphix

LD38 Surface linear light IP67. Constant Current 5.1W 500mA 48° Wide beam with Adjustable wall bracket. LD38 is a high-power linear surface grazer offering superb continuous wall washing capabilities. Compact with a minimal design, set lengths are available to a maximum of 1350mm, with evenly maintained spacing across LEDs, resulting in no shadows. White, RGBW and Tunable White engines are available along with a choice of optics for wall washing or flood lighting, various mounting options and glare control accessories, offering great flexibility for a variety of applications. For additional glare control, LD38C can be specified and is supplied with an integrated anti-glare cowl.

Verfügbare Bestückungen Lampen-Nennleistung Lampen-Lichtstrom Leuchten-Lichtausbeute CCT CRI
1 x LED 5,1 W 373 lm 73 lm/W 3000 K 93
LD38 5.1W 500mA WB AWB-50

LD38 5.1W 500mA WB AWB-50

Lichtaustritt 1

1 x LED

Montageart

Wandanbau

Bauform und Abmessungen

Länge: 300 mm

Breite: 34 mm

Höhe: 40 mm

Ausrichtbarkeit

Frei

Design

Oberflächenanmutung: Glas, Glänzend, Matt, Edelstahl

Gehäusefarbe: Schwarz, Weiß, Anthrazit / Graphit, Silbergrau

Elektrik

Systemleistung: 5,1 W

Controller: Dimmbar 0..10V, Dimmbar 1..10V, DMX, DALI

Schutzklasse: III

Schutzeigenschaften

IP: 67

Kennzeichnungen: CE

Weitere Informationen

Temperaturbereich: -20...50 °C

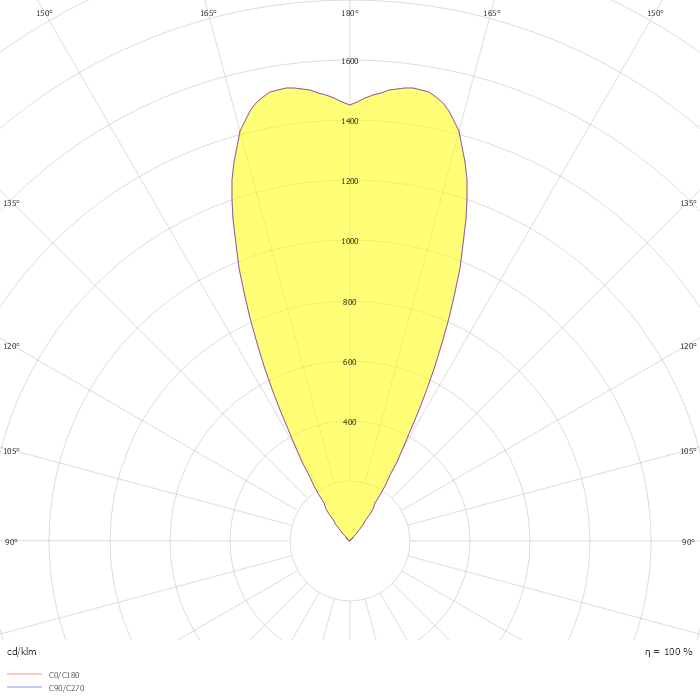

Photometrie-Dateien

ZIP file
