Produktdatenblatt

WOLF BASE LED 7W Ottica/W 38°

84024050/W

Exenia

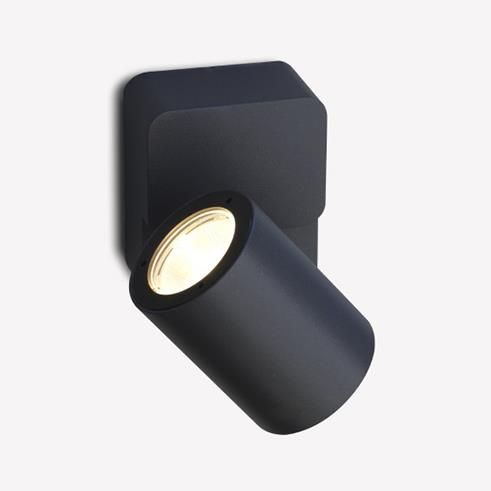

LED base projector with body in die-cast aluminium and glass sealed optical chamber. Luminaire head allows for 305° rotation and 135° tilt. Available with nominal 7W (840lm) in 2700K, 3000K or 4000K in CRI95 or 3000K in CRI85. Lumen maintenance of 115,000 hrs at L80 B10. Natural powder coat finish options include carbon grey, mud brown, matt sand, matt white textured and rust effect. Optics choices include Spot (15°), Flood (21°), Medium (32°) and Wide (38°). WOLF is available with a range of optical accessories including honeycomb louvre (factory fitted) as well as coloured ring, snoot, visor and adjustable elliptical lens accessory 14°x60° (field changeable and to be ordered separately). Coloured rings are made from UV resistant PMMA and are available in translucent orange, translucent blue, translucent green and neutral. Ingress protection of IP66. Class I luminaire including ON/OFF power supply fitted in the base.

Lampentyp Lampen-Nennleistung Gesamtlichtstrom Leuchten-Lichtausbeute CCT CRI
LED 7,5 W 588 lm 78 lm/W 3000 K 85
WOLF BASE LED 7W Ottica/W 38°

WOLF BASE LED 7W Ottica/W 38°

Lichtaustritt 1 (integriert)

LED

Montageart

Stehleuchte / Poller, Wandanbau

Bauform und Abmessungen

Länge: 97 mm

Breite: 75 mm

Höhe: 44 mm

Ausrichtbarkeit

Frei

Elektrik

Systemleistung: 7,5 W

Schutzklasse: I

Schutzeigenschaften

IP: 66

IK: 08

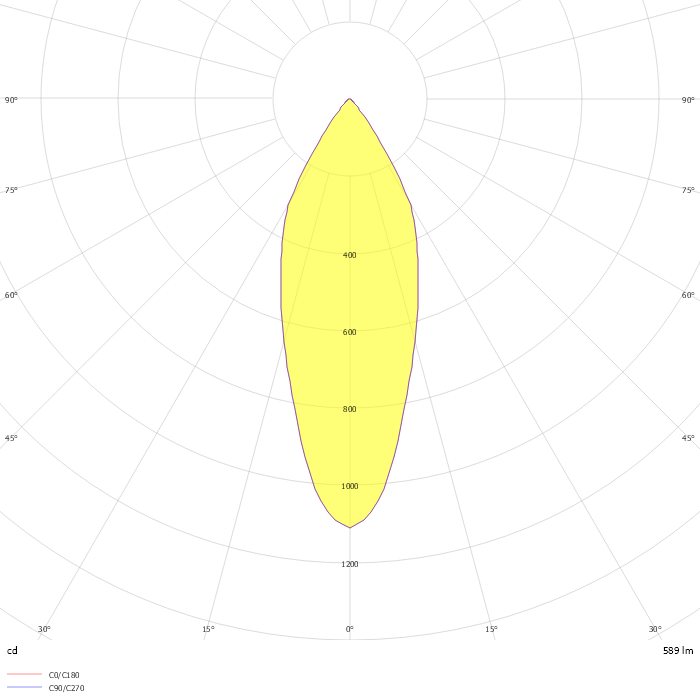

Photometrie-Dateien

ZIP file
