Produktdatenblatt

6502 Rapid system - two-lamp LED 4000K CRI 83 71W CLD-E White + 6414 Rapid System concentric parabolic

237543-07+237765-00

Disano

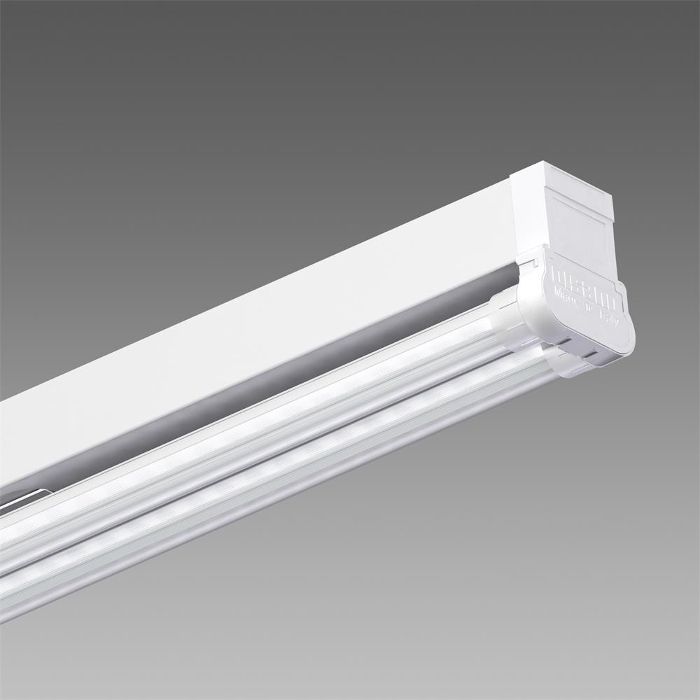

Produktbild 1: 6502 Rapid system - two-lamp LED 4000K CRI 83 71W CLD-E White + 6414 Rapid System concentric parabolic
Produktbild 1: 6502 Rapid system - two-lamp LED 4000K CRI 83 71W CLD-E White + 6414 Rapid System concentric parabolic

Produktbild 1: 6502 Rapid system - two-lamp LED 4000K CRI 83 71W CLD-E White + 6414 Rapid System concentric parabolic



IP
40

IK
07

Housing: in galvanized rolled steel, with anti-cutting turned-up edges and ABS end caps. Diffuser: micro-ribbed methacrylate Coating: pre-painted in oven with polyester resin, UV-stabilised, phosphate pre-treatment. Low flicker: luminaire with very low flicker: evenly distributed light for greater visual safety. Photobiological risk: exempt risk group according to EN62471. : EN60598-1. With degree of protection according to EN60529. Equipment: -fixing pawl in nylon. - LED tubes can be rotated to direct the light and optimise the output of the optical accessories. Mounting: ceiling or wall mount Temperature Chart (Description): -10 °C ÷ +40 °C

Verfügbare Bestückungen Lampen-Nennleistung Lampen-Lichtstrom Leuchten-Lichtausbeute CCT CRI
1 x LED 71 W 7733 lm 109 lm/W 4000 K 83
6502 Rapid system - two-lamp LED 4000K CRI 83 71W CLD-E White + 6414 Rapid System concentric parabolic

6502 Rapid system - two-lamp LED 4000K CRI 83 71W CLD-E White + 6414 Rapid System concentric parabolic

Lichtaustritt 1 (Notbeleuchtung)

1 x LED

Montageart

Pendel

Bauform und Abmessungen

Länge: 1486 mm

Breite: 253 mm

Höhe: 129 mm

Ausrichtbarkeit

Starr

Design

Gehäusefarbe: Weiß

Elektrik

Systemleistung: 71 W

Schutzklasse: I

Informationen zu Notlichtfunktionen

Reine Notbeleuchtung

Rettungszeichenleuchte: N/A

Schutzeigenschaften

IP: 40

IK: 07

Kennzeichnungen: CE

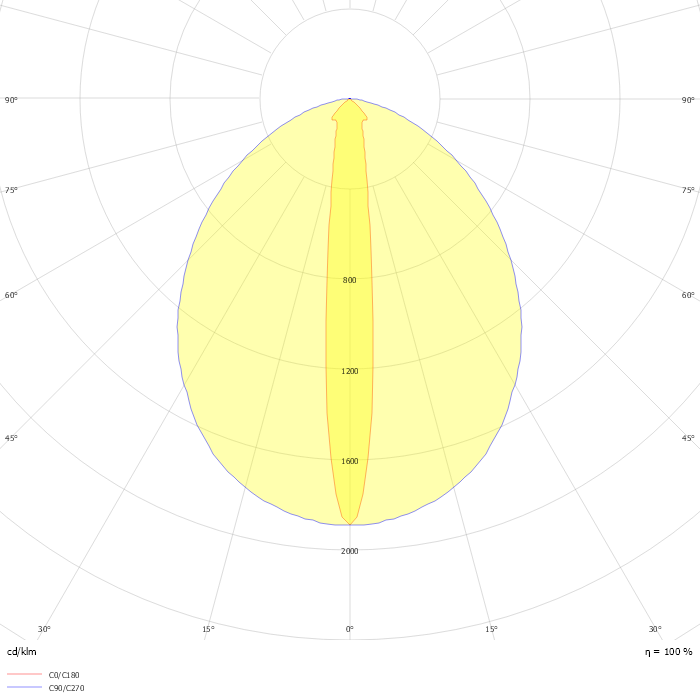

Photometrie-Dateien

ZIP file
