Produktdatenblatt

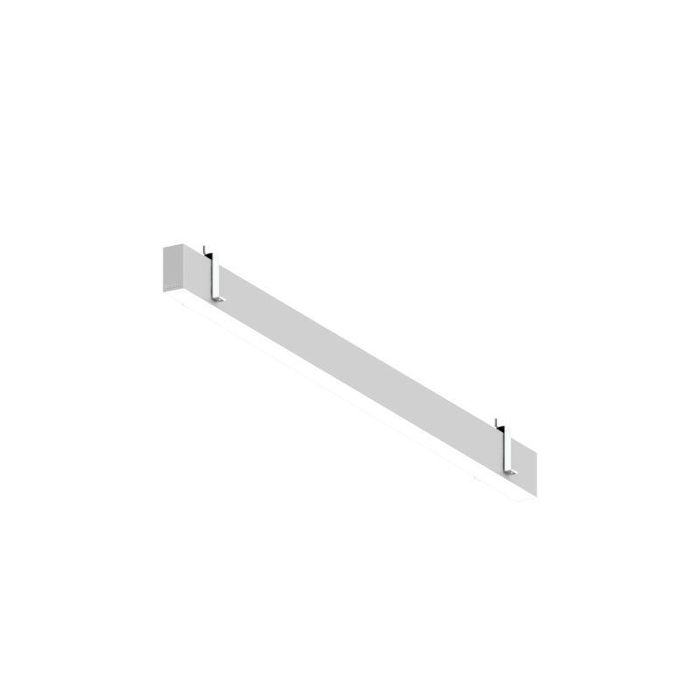

Nybro 1 Recessed ceiling luminaires

NYB-80021-P-W40

LIGMAN

- Lamp LED - CRI Ra > 80 - MacAdam Ellipse 3 SDCM - Colour Temperature 2700K , 3000K ,4000K ,5000K - Diffuser for light output control O – Opal diffuser UGR <19 P – Micro-prismatic UGR <13 Surface, recessed or pendant mounted wall and ceiling linear luminaires with symmetrical up and down lighters for general or specialized lighting application Lighting control system. - Wireless control employing the Bluetooth® 4.0 protocol controlled via Ligman’s mobile App or physical control via xPress switch - Daylight and occupancy sensor options Low copper content die casted aluminium end caps with aluminium profiles completed with 316 grade stainless steel fasteners. Option for opal or micro-prismatic PMMA diffusers for glare control. Built-in driver. Passive thermal management. Surface wall and ceiling mountings with the use of steel support and screws. Pendant mounting with the application of adjustable steel suspension (1m) complete with electrical wires in white. Applications: private residences, offices schools and universities, retail, showrooms, galleries, museums, conference halls, meeting rooms, banks, bars, restaurants, hotel and similar installations

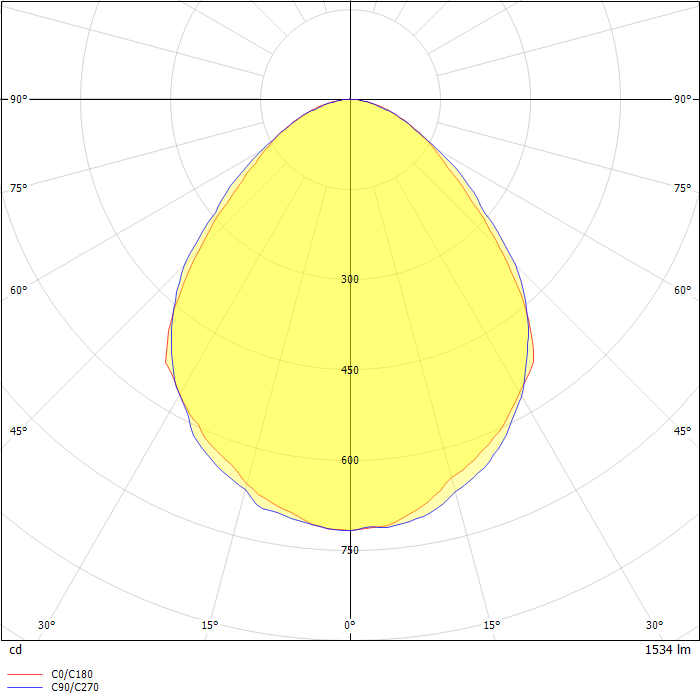

Lampentyp Lampen-Nennleistung Gesamtlichtstrom Leuchten-Lichtausbeute CCT CRI
LED 19,3 W 1534 lm 79 lm/W 4032 K 80
Nybro 1 Recessed ceiling luminaires

Nybro 1 Recessed ceiling luminaires

Lichtaustritt 1 (integriert)

LED

Montageart

Deckenanbau

Bauform und Abmessungen

Höhe: 70 mm

Durchmesser: 300 mm

Gewicht: 1,9 kg

Ausrichtbarkeit

Starr

Design

Gehäusefarbe: Schwarz, Weiß, Silbergrau

Blendungsbegrenzung

Blendungsbegrenzung: UGR < 19

Elektrik

Systemleistung: 19,3 W

Spannung: 230 V AC

Vorschaltgerät: EVG

Controller: Dimmbar 1..10V, DALI

Schutzklasse: I

Eingebaute Sensorik

Eingebaute Sensorik: Tageslichtsensor, Bewegungssensor, Anwesenheitssensor

Schutzeigenschaften

IP: 20

Oberflächentemperatur: 40 °C

Kennzeichnungen: CE, ENEC, UL

Photometrie-Dateien

ZIP file
