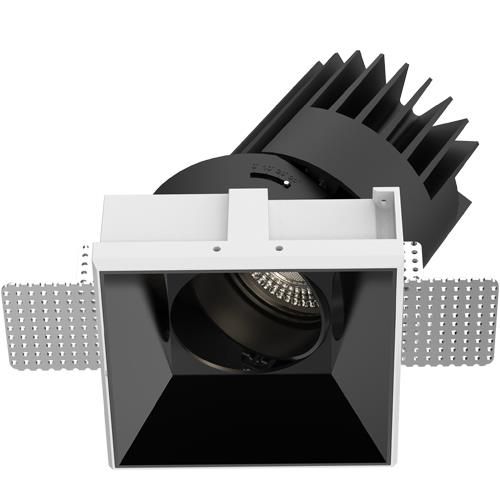

Square recessed trimless downlight made of die-cast aluminium; System Power 42W; measurements 145X145(Aperture)x190mm; ceiling cutout of 147x147mm with a trimless mounting; ceiling thickness 12.5-25mm; rotation 355° and pivot max. 30°; CCT 3000K; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; beam characteristic with 18° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work with UGR<19; degree of housing protection IP54; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician
| Lampentyp | Lampen-Nennleistung | Gesamtlichtstrom | Leuchten-Lichtausbeute | CCT | CRI |
|---|---|---|---|---|---|
| LED | 41,73 W | 3116 lm | 75 lm/W | 2913 K | 92 |
Montageart
Deckeneinbau
Bauform und Abmessungen
Länge: 150 mm
Breite: 150 mm
Höhe: 190 mm
Ausrichtbarkeit
Drehbar, Schwenkbar
Elektrik
Systemleistung: 41,73 W
Schutzeigenschaften
IP: 54
Photometrie-Dateien
ZIP file
