Produktdatenblatt

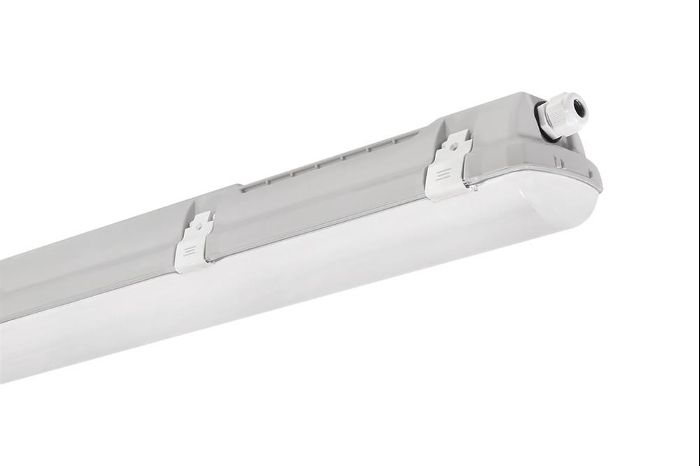

PRIMA 1.2ft ABSc 2200/840 ML

110530

TREVOS

resistant to dust, humidity and spraying water, the light fitting is suitable for both indoor and outdoor roofed industrial spaces; variable suspension spacing ranging from 110 - 370 mm; enable the light to be installed onto suspension fittings left over from previous lighting; optimal mounting height: 3 to 8 m; ON/OFF electronic driver (AC, DC on demand); Body: dark grey ABS (high chemical resistance, UV stability, RAL 7001); Diffuser: translucent ABS (high chemical resistance, UV stability); Reflector: steel sheet, white (RAL 9003); Clips: stainless steel + polyamide; Sealing: polyurethane (PUR), foam-filled base groove; Connection: screwless three-pole terminal block; Power: 14,6 W; Luminaire flux: 2190 lm; Lifetime: L90/B10; 50000 hours; Impact strength: IK10; Ambient temperature: -25|45 °C; Weight: 0,9 kg;

Lampentyp Lampen-Nennleistung Gesamtlichtstrom Leuchten-Lichtausbeute CCT CRI
LED 14,6 W 2360 lm 162 lm/W 4000 K 80
PRIMA 1.2ft ABSc 2200/840 ML

PRIMA 1.2ft ABSc 2200/840 ML

Lichtaustritt 1 (integriert)

LED

Montageart

Deckenanbau

Bauform und Abmessungen

Länge: 615 mm

Breite: 98 mm

Höhe: 84 mm

Ausrichtbarkeit

Starr

Design

Oberflächenanmutung: Kunststoff

Gehäusefarbe: Silbergrau, Weiß

Designer: TREVOS

Elektrik

Systemleistung: 14,6 W

Vorschaltgerät: EVG

Schutzklasse: I

Schutzeigenschaften

IP: 66

IK: 10

Kennzeichnungen: CE, ENEC

Weitere Informationen

Temperaturbereich: -25...45 °C

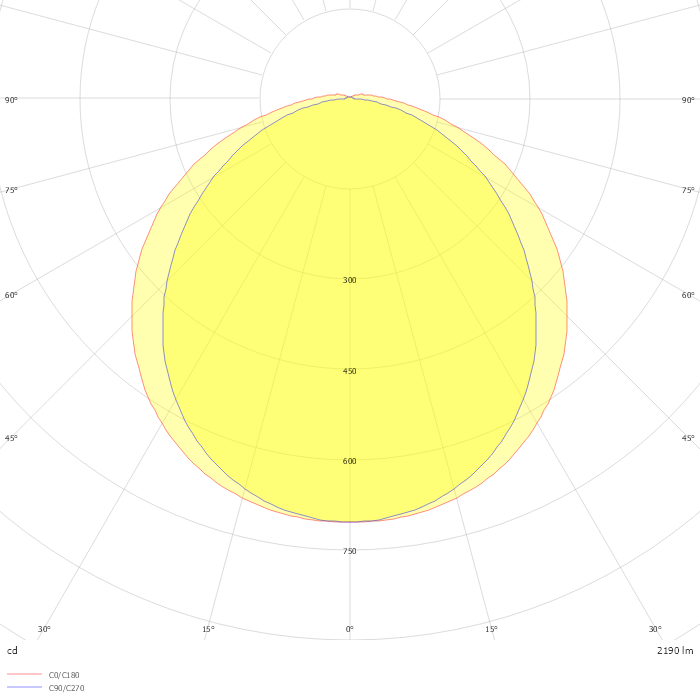

Photometrie-Dateien

ZIP file
