Produktdatenblatt

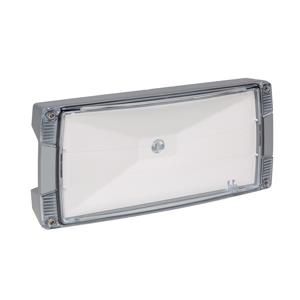

Atlantic LED II R CG-S

40071355603

Eaton Emergency Lighting

• LED safety luminaire with high protection class (IP66) for indoor and outdoor use • An integrated pressure equalization membrane reduces the effects of condensation in changing weather conditions • Luminaire with limited surface temperatures for use in operating areas with fi re hazard • Acc. HACCP suitable for use in food processing industry • Robust construction from aluminium diecast and high impact resistant cover made of polycarbonate • Numerous knock-outs for cable entries and double terminal for through-wiring • High spacing by double optics technology and highly effi cient HighPower LEDs • Up to 28 m from luminaire to luminaire with optics for exit route illumination • Minimum service requirement due to high service life of the LEDs (up to 50.000 hours) • Shortened inspection effort due to CEWA GUARD technology • Automatic function monitoring of up to 20 luminaires per circuit • Reduced installation expenditures by STAR technology • Freely programmable mixed operation of the switching modes per luminaire in one circuit

Lampentyp Lampen-Nennleistung Gesamtlichtstrom Leuchten-Lichtausbeute CCT CRI
LED 3,9 W 250 lm 64 lm/W 6000 K 65
Atlantic LED II R CG-S

Atlantic LED II R CG-S

Lichtaustritt 1 (integriert, Notbeleuchtung)

LED

Montageart

Deckenanbau

Bauform und Abmessungen

Länge: 303 mm

Breite: 136 mm

Höhe: 62 mm

Gewicht: 0,6 kg

Ausrichtbarkeit

Starr

Elektrik

Systemleistung: 3,9 W

Schutzklasse: I

Informationen zu Notlichtfunktionen

Reine Notbeleuchtung

Rettungszeichenleuchte: N/A

Schutzeigenschaften

IP: 66

IK: 09

Kennzeichnungen: CE

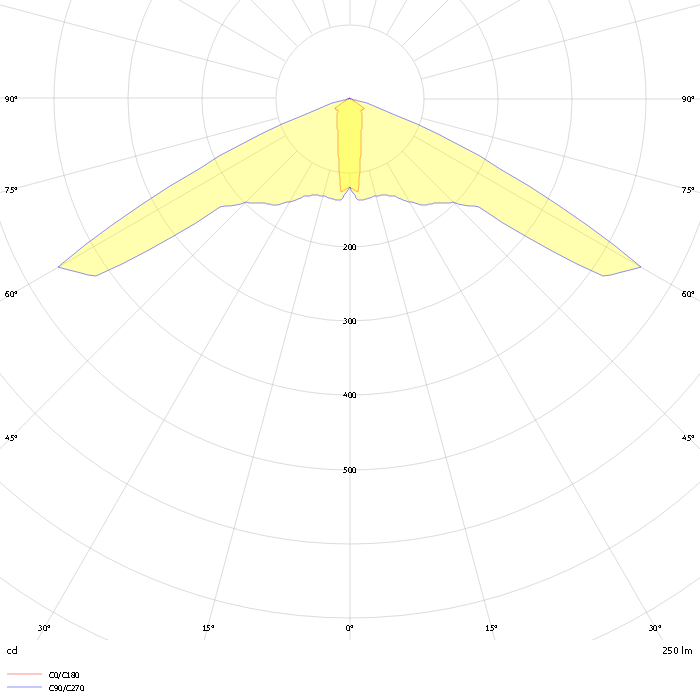

Photometrie-Dateien

ZIP file
