Produktdatenblatt

TLON 2.0 surface 500 5000lm 4000K opal plexiglass (PLX) black

200263.5L04.221

LUG

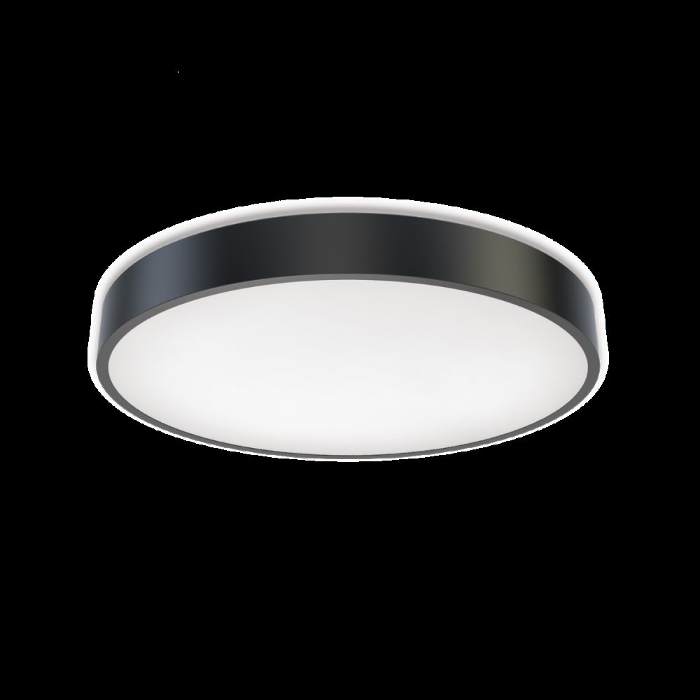

Produktbild 1: TLON 2.0 surface 500 5000lm 4000K opal plexiglass (PLX) black
Produktbild 1: TLON 2.0 surface 500 5000lm 4000K opal plexiglass (PLX) black

Produktbild 1: TLON 2.0 surface 500 5000lm 4000K opal plexiglass (PLX) black



IP
20

IK
03

Decorative surface-mounted luminaire. It is possible to order the luminaires in various dimensions. Mounting: surface mounted Body: formed aluminum profile, plastic, steel sheet Power supply efficiency: >90% Power: 220-240V 50/60Hz Includes light source: yes Lifetime (L80B10): 100 000 h Operating temperature range: 0˚C ... +35˚C Available on request: luminaire in other sizes Warranty: 5 years Application: offices, conference rooms, reception desks, shopping centers, car showrooms, boutiques

Lampentyp Lampen-Nennleistung Gesamtlichtstrom Leuchten-Lichtausbeute CCT CRI
LED 47 W 5000 lm 106 lm/W 4000 K 80
TLON 2.0 surface 500 5000lm 4000K opal plexiglass (PLX) black

TLON 2.0 surface 500 5000lm 4000K opal plexiglass (PLX) black

Lichtaustritt 1 (integriert)

LED

Montageart

Deckenanbau

Bauform und Abmessungen

Länge: 500 mm

Breite: 500 mm

Höhe: 80 mm

Ausrichtbarkeit

Starr

Design

Gehäusefarbe: Schwarz

Elektrik

Systemleistung: 47 W

Schutzklasse: I

Schutzeigenschaften

IP: 20

IK: 03

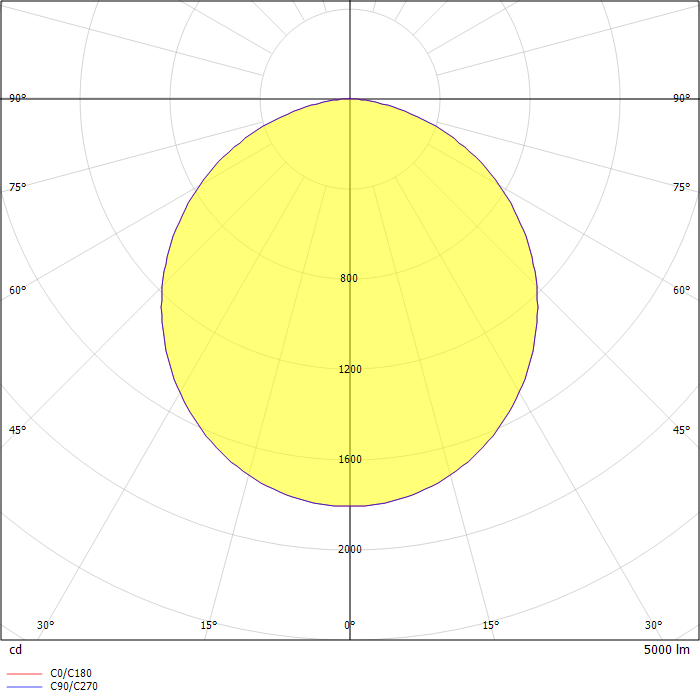

Photometrie-Dateien

ZIP file
