Produktdatenblatt

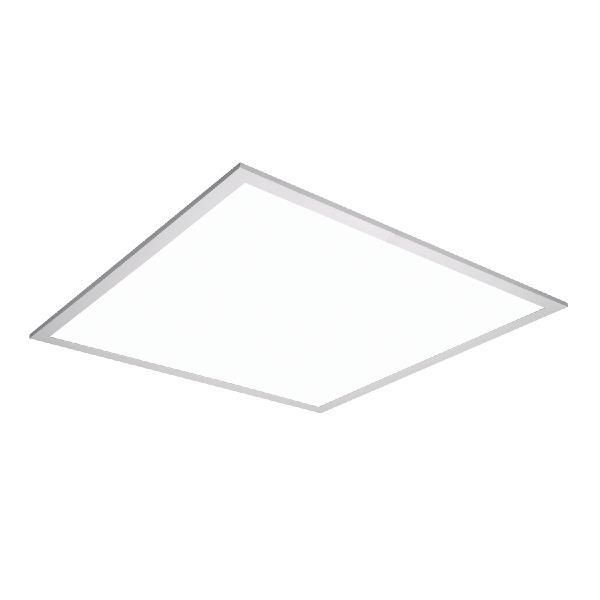

FPanel LED Panel Series

14FP4235C-347V

Cooper Lighting

Ultra thin less than 2" height fits shallow plenums with room to spare, Models from less than 20W and High Lumen models up to 7000 lumens, HE models at 136 lumens per watt deliver up to 60% energy savings, Stock CCT in 80 CRI @ 3000K, 3500K, 4000K, 5000K and 90 CRI 3000K, Easy to install - wire and wire nuts included, Superior optics ensure long life, smooth corner to corner illumination, UNV 0-10V dimming standard driver with EM options, IP5X and CCEA rated version available, Pre-Installed Flex version available

Lampentyp Lampen-Nennleistung Gesamtlichtstrom Leuchten-Lichtausbeute CCT CRI
LED 37,2 W 4259 lm 114 lm/W 3500 K 90
FPanel LED Panel Series

FPanel LED Panel Series

Lichtaustritt 1 (integriert)

LED

Montageart

Deckeneinbau

Bauform und Abmessungen

Länge: 305 mm

Breite: 1219 mm

Höhe: 10 mm

Ausrichtbarkeit

Starr

Elektrik

Systemleistung: 37,2 W

Schutzeigenschaften

IP: 47

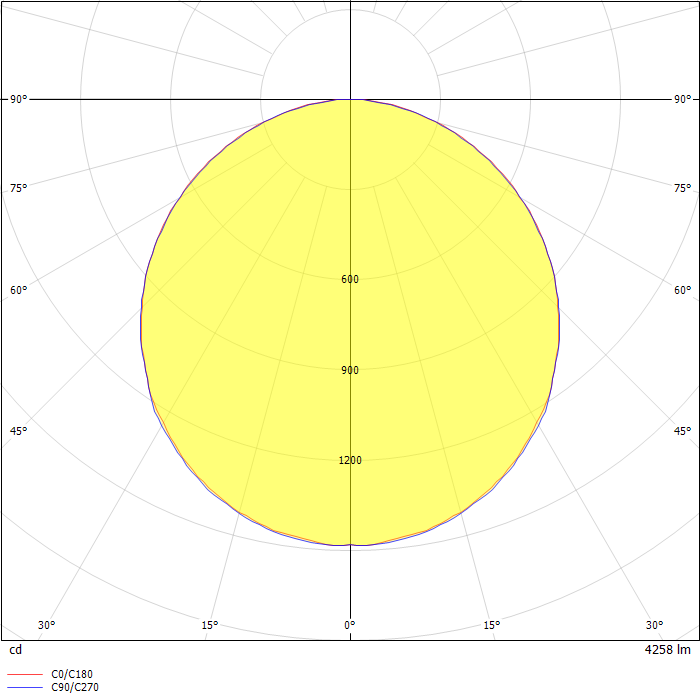

Photometrie-Dateien

ZIP file
