Produktdatenblatt

Pittsfield 4 Pendant luminaires

PIT-90011-P-W40

LIGMAN

- Lamp LED - CRI Ra > 80 - MacAdam Ellipse 3 SDCM - Colour Temperature 3000K ,4000K - Diffuser for light output control O – Opal diffuser UGR <19 P – Micro-prismatic UGR <13 Modern design square shaped surface, recessed and pendant mounted ceiling luminaires with symmetrical up and down lighting for general or specialized lighting requirements. Lighting control system. - Wireless control employing the Bluetooth® 4.0 protocol controlled via Ligman’s mobile App or physical control via xPress switch - Daylight and occupancy sensor options Extruded aluminium profile with 316 grade stainless steel fasteners. Opal or Micro-prismatic PMMA diffuser options for glare control. Built-in driver. Passive thermal management. Surface ceiling mountings with the use of steel support and screws. Pendant mounting with the application of adjustable steel suspension (1m) complete with electrical wires in white. Applications: private residences, offices schools and universities, retail, showrooms, galleries, museums, conference halls, meeting rooms, banks, bars, restaurants, hotel and similar installations

Lampentyp Lampen-Nennleistung Gesamtlichtstrom Leuchten-Lichtausbeute CCT CRI
LED 27,2 W 3042 lm 112 lm/W 4032 K 80

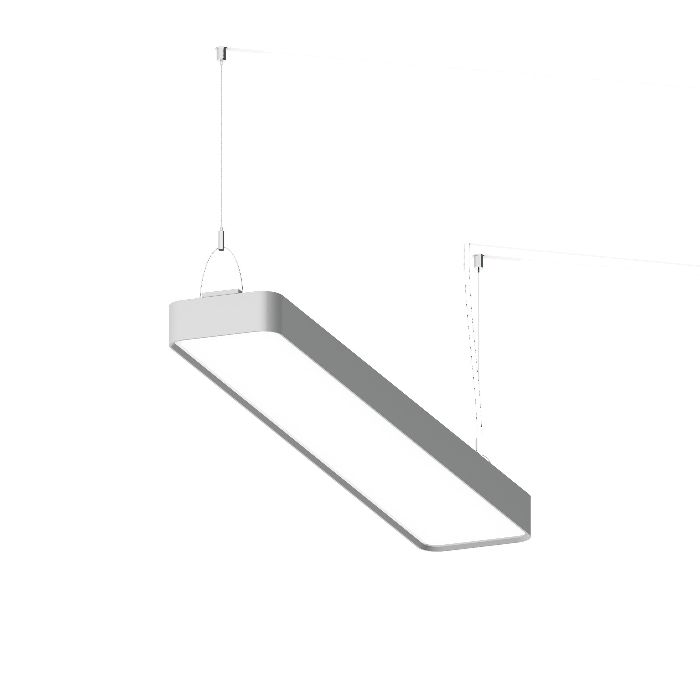

Pittsfield 4 Pendant luminaires

Pittsfield 4 Pendant luminaires

Lichtaustritt 1 (integriert)

LED

Montageart

Pendel

Bauform und Abmessungen

Länge: 1060 mm

Breite: 213 mm

Höhe: 115 mm

Gewicht: 5,2 kg

Ausrichtbarkeit

Frei, Höhenverstellbar

Design

Gehäusefarbe: Schwarz, Weiß, Silbergrau

Blendungsbegrenzung

Blendungsbegrenzung: UGR < 19

Elektrik

Systemleistung: 27,2 W

Spannung: 230 V AC

Vorschaltgerät: EVG

Controller: Dimmbar 1..10V, DALI

Schutzklasse: I

Eingebaute Sensorik

Eingebaute Sensorik: Tageslichtsensor, Bewegungssensor, Anwesenheitssensor

Schutzeigenschaften

IP: 20

Oberflächentemperatur: 40 °C

Kennzeichnungen: CE, UL

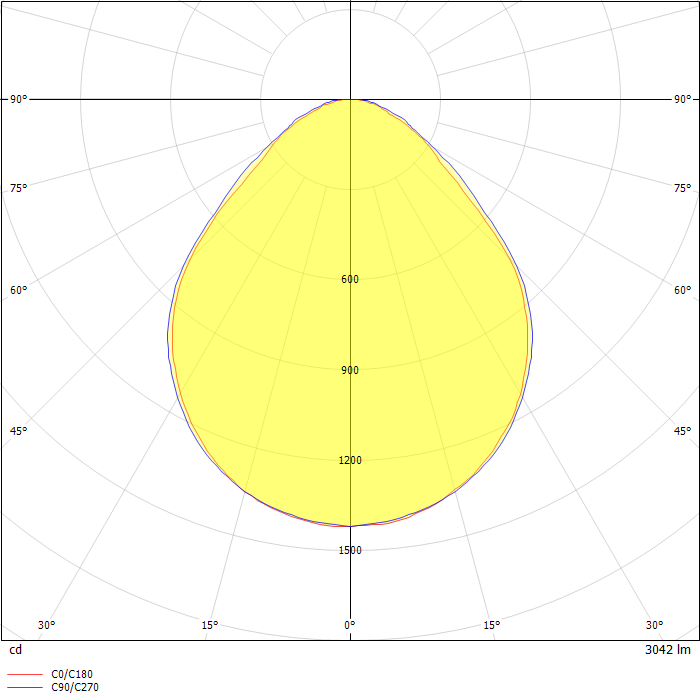

Photometrie-Dateien

ZIP file
