Produktdatenblatt

Atlantic LED II LT R CG-S

40071355611

Eaton Emergency Lighting

• LED safety luminaire with high protection class (IP66) for indoor and outdoor use • An integrated pressure equalization membrane reduces the effects of condensation in changing weather conditions • Specialized electronics with components for reliable operation down to -40 °C • Luminaire with limited surface temperatures for use in operating areas with fire hazard • Acc. HACCP suitable for use in food processing industry • Robust construction from aluminium diecast and high impact resistant cover made of polycarbonate • Numerous knock-outs for cable entries • High spacing by double optics technology and highly efficient HighPower LEDs • Up to 28 m from luminaire to luminaire with optics for escape route illumination • Minimum service requirement due to high service life of the LEDs (up to 50.000 hours @ 40°C, lower temperature will increase the service time) • Shortened inspection effort due to CEWA GUARD technology • Automatic function monitoring of up to 20 luminaires per circuit • Reduced installation cost by STAR technology • Freely programmable mixed operation of the switching modes per luminaire in one circuit • Increased safety through SLI-technology, monitoring of up to 8 individual LEDs in series connection

Lampentyp Lampen-Nennleistung Gesamtlichtstrom Leuchten-Lichtausbeute CCT CRI
LED 3,9 W 250 lm 64 lm/W 6000 K 65
Atlantic LED II LT R CG-S

Atlantic LED II LT R CG-S

Lichtaustritt 1 (integriert, Notbeleuchtung)

LED

Montageart

Deckenanbau

Bauform und Abmessungen

Länge: 303 mm

Breite: 136 mm

Höhe: 62 mm

Ausrichtbarkeit

Starr

Elektrik

Systemleistung: 3,9 W

Schutzklasse: I

Informationen zu Notlichtfunktionen

Reine Notbeleuchtung

Notfall Batterieversorgung: Zentralbatterie

Rettungszeichenleuchte: N/A

Schutzeigenschaften

IP: 66

IK: 09

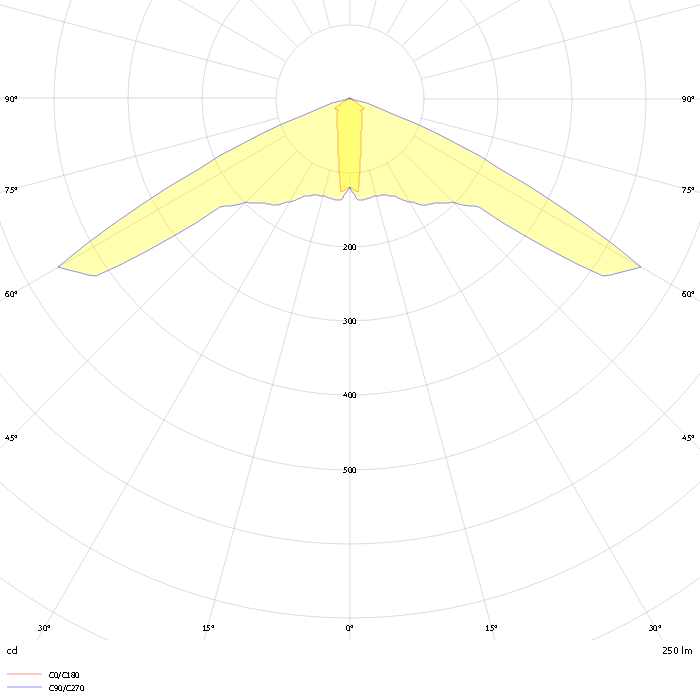

Photometrie-Dateien

ZIP file
