Produktdatenblatt

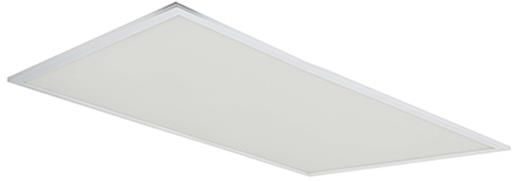

COMMERCIAL MODULAR - Endurance TPa 1200x600

AERMLED2/120/CW

Ansell Lighting

AERMLED2/120/CW Commercial Endurance LED TPa 1200x600 Recessed Panel Supplied c/w Remote Driver • High performance maintenance free LED panel • TPa as standard • 60W panel outperforms 3x28W T5 • Cool white, warm white and daylight options • White anodised aluminium frame for visual compatibility with ceiling grid • Low glare and even light distribution for multiple applications • Panel Pod Self-Test emergency option • Panel Pod sensor option • Powered by Philips • LED lifespan L80 B10 54,000 hours IP44* * Subject to ceiling/installation types * Not applicable to surface/suspended applications Options /OCTO - OCTO Smart Control /DD Digital Dimming (DD1/DD3)* *DD2/DD4 available with alternative control gear AERMLED/SK 2 Metre Suspension Kit AEQTCC/600 Equaliser 600x600 Temperature Regulator Operating Temp -20°C to 40°C • Suitable for internal use only • 5 Year Product Warranty • IP44

Lampentyp Lampen-Nennleistung Gesamtlichtstrom Leuchten-Lichtausbeute CCT CRI
LED 60 W 5382 lm 90 lm/W 4000 K 80
COMMERCIAL MODULAR - Endurance TPa 1200x600

COMMERCIAL MODULAR - Endurance TPa 1200x600

Lichtaustritt 1 (integriert)

LED

Montageart

Deckeneinbau

Bauform und Abmessungen

Länge: 1195 mm

Breite: 595 mm

Höhe: 100 mm

Ausrichtbarkeit

Starr

Design

Designer: Dominic Harkness

Elektrik

Systemleistung: 60 W

Schutzklasse: I

Schutzeigenschaften

IP: 44

Kennzeichnungen: CE

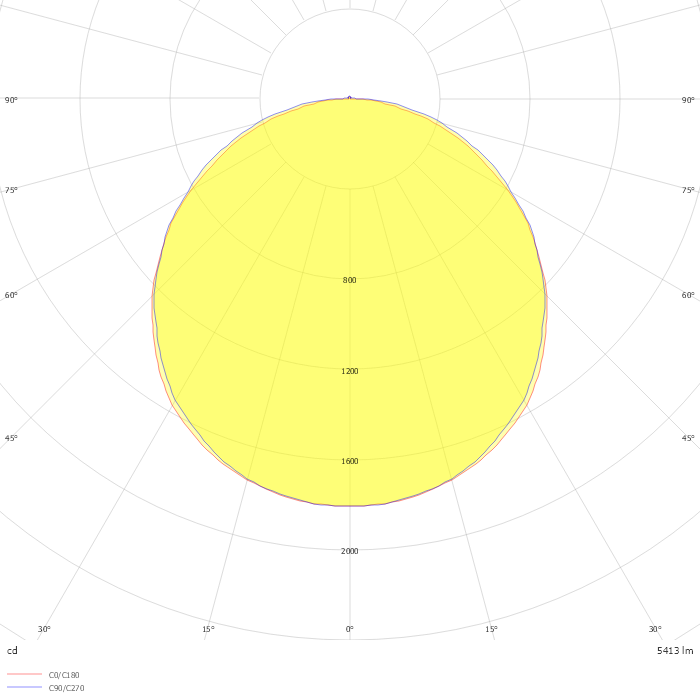

Photometrie-Dateien

ZIP file
