Produktdatenblatt

Matric 38mm Suspended Direct-Indirect - R1

LR1OEE-840M-L1182-Y

Lightnet

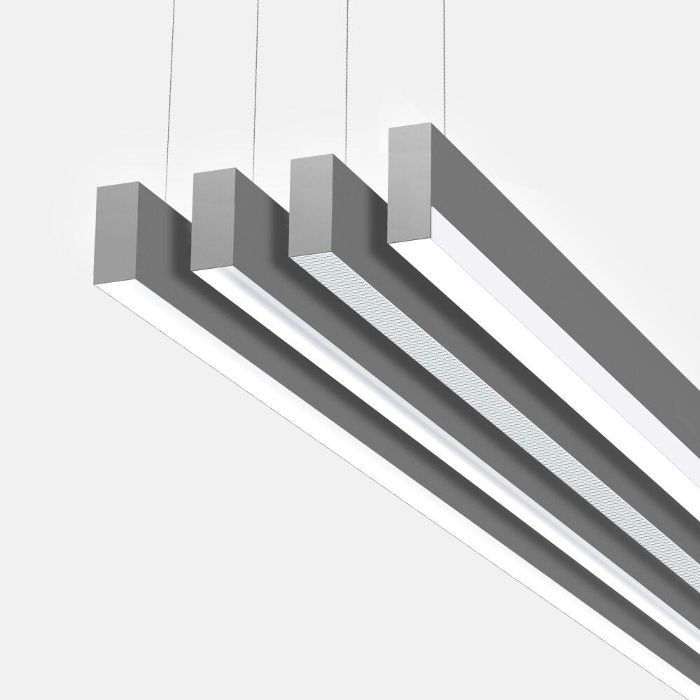

LED pendant luminaire. Direct only or direct-indirect light distribution. Light channel made of aluminium profile with 38mm track width. Precise length production according to specifications possible. Surface natural anodised or white, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Direct part using precision lenses with louvre for wide rotationally symmetrical light distribution with high glare limitation (UGR<16). Louvre available in various colour combinations. Indirect light with innovative lens technology for wide-angle ceiling illumination. Converter integrated into luminaire housing, optionally switchable or dimmable (1-10V, DALI, Touch-Dim, Casambi). Colour temperature 3000K or 4000K. Binning initial ≤ MacAdam 3. Colour rendering CRI>80. Height-adjustable cord suspension with transparent power supply cable.

Lampentyp Lampen-Nennleistung Gesamtlichtstrom Leuchten-Lichtausbeute CCT CRI
LED 29 W 3920 lm 135 lm/W 4000 K 82
Matric 38mm Suspended Direct-Indirect - R1

Matric 38mm Suspended Direct-Indirect - R1

Lichtaustritt 1 (integriert)

LED

Montageart

Pendel

Bauform und Abmessungen

Länge: 1182 mm

Breite: 38 mm

Höhe: 85 mm

Ausrichtbarkeit

Höhenverstellbar

Elektrik

Systemleistung: 29 W

Schutzeigenschaften

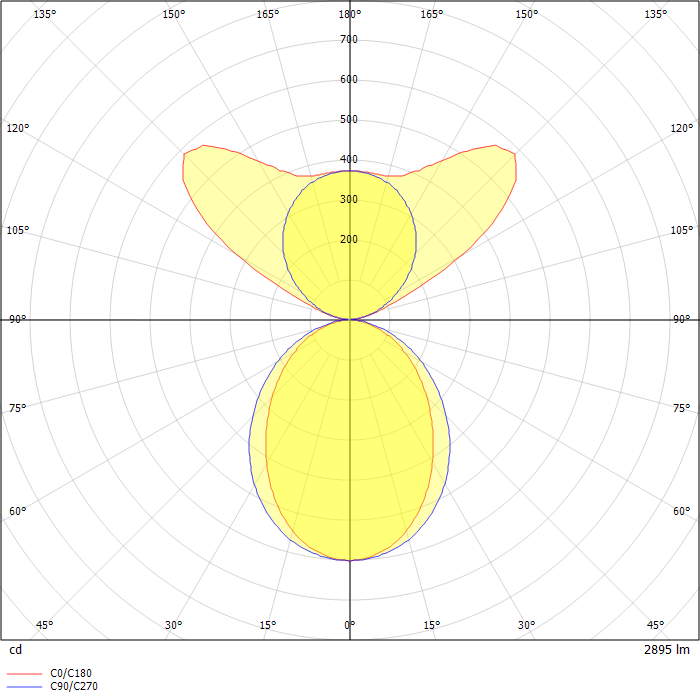

Photometrie-Dateien

ZIP file
