Produktdatenblatt

Brahe Panel RE 595x595 2xLinear LS 2600 DALI 830 White C4L-3m

32208302620

Aura Light

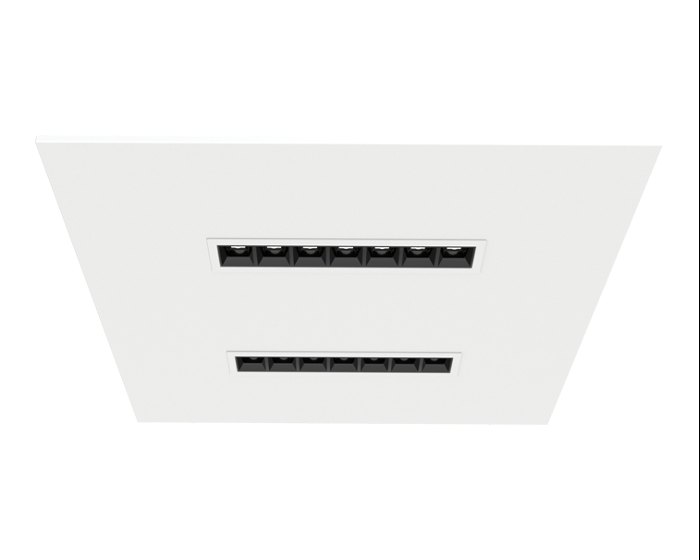

Produktbild 1: Brahe Panel RE 595x595 2xLinear LS 2600 DALI 830 White C4L-3m
Produktbild 1: Brahe Panel RE 595x595 2xLinear LS 2600 DALI 830 White C4L-3m

Produktbild 1: Brahe Panel RE 595x595 2xLinear LS 2600 DALI 830 White C4L-3m



IP
20

Brahe Panel is a LED-panel equipped with two 300x60 mm downlights with the latest LED technology for maximum efficiency and optimal light distribution. Its high-quality lens and reflector technology minimize glare and provide precise and pleasant lighting. INFO to the lighting designer: Please note that the light openings cannot be controlled separately in practice, as both downlights are controlled together by a 1-channel driver. However, it is possible to order a version with separate control upon request.

Lampentyp Lampen-Nennleistung Gesamtlichtstrom Leuchten-Lichtausbeute CCT CRI
LED 9 W 1265 lm 141 lm/W 3000 K 80
Brahe Panel RE 595x595 2xLinear LS 2600 DALI 830 White C4L-3m

Brahe Panel RE 595x595 2xLinear LS 2600 DALI 830 White C4L-3m

Lichtaustritt 1 (integriert)

LED

Lampentyp Lampen-Nennleistung Gesamtlichtstrom Leuchten-Lichtausbeute CCT CRI
LED 9 W 1265 lm 141 lm/W 3000 K 80
Brahe Panel RE 595x595 2xLinear LS 2600 DALI 830 White C4L-3m

Brahe Panel RE 595x595 2xLinear LS 2600 DALI 830 White C4L-3m

Lichtaustritt 2 (integriert)

LED

Montageart

Deckeneinbau

Bauform und Abmessungen

Länge: 595 mm

Breite: 595 mm

Höhe: 43 mm

Ausrichtbarkeit

Starr

Elektrik

Systemleistung: 18 W

Schutzklasse: II

Schutzeigenschaften

IP: 20

Photometrie-Dateien

ZIP file
