Produktdatenblatt

Ringo Star 100mm Acoustic Suspended - G1

RG1ASE-830E-D1200-U-AY

Lightnet

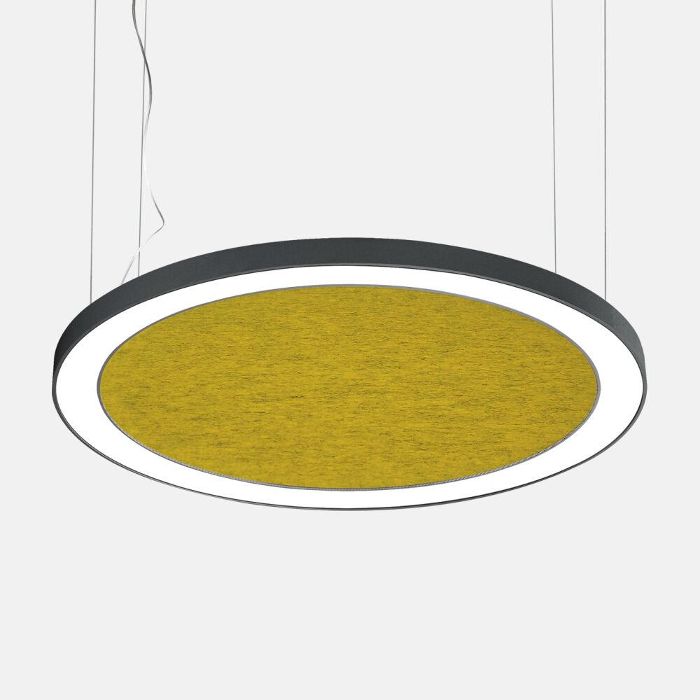

LED acoustic pendant luminaire. Direct-indirect or direct-only light distribution. Luminaire body made of aluminium profile with 100mm track width. 5 different diameters from 600mm to 2000mm. Surface silver, white, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Acoustic element in 4 options (Green Moss, Yellow Felt, Graphite Felt or White Perforated). Microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Converter integrated into luminaire housing, optionally switchable or dimmable (1-10V, DALI, Touch-Dim, Casambi). Colour temperatures 2200K, 2700K, 3000K, 3500K, 4000K or 6500K. Binning initial ≤ MacAdam 3. Colour rendering CRI>80 or CRI>90.

Lampentyp Lampen-Nennleistung Gesamtlichtstrom Leuchten-Lichtausbeute CCT CRI
LED 7 W 730 lm 104 lm/W 3000 K 82
Ringo Star 100mm Acoustic Suspended - G1

Ringo Star 100mm Acoustic Suspended - G1

Lichtaustritt 1 (integriert)

LED

Lampentyp Lampen-Nennleistung Gesamtlichtstrom Leuchten-Lichtausbeute CCT CRI
LED 7 W 730 lm 104 lm/W 3000 K 82
Ringo Star 100mm Acoustic Suspended - G1

Ringo Star 100mm Acoustic Suspended - G1

Lichtaustritt 2 (integriert)

LED

Lampentyp Lampen-Nennleistung Gesamtlichtstrom Leuchten-Lichtausbeute CCT CRI
LED 7 W 730 lm 104 lm/W 3000 K 82
Ringo Star 100mm Acoustic Suspended - G1

Ringo Star 100mm Acoustic Suspended - G1

Lichtaustritt 3 (integriert)

LED

Lampentyp Lampen-Nennleistung Gesamtlichtstrom Leuchten-Lichtausbeute CCT CRI
LED 7 W 730 lm 104 lm/W 3000 K 82
Ringo Star 100mm Acoustic Suspended - G1

Ringo Star 100mm Acoustic Suspended - G1

Lichtaustritt 4 (integriert)

LED

Lampentyp Lampen-Nennleistung Gesamtlichtstrom Leuchten-Lichtausbeute CCT CRI
LED 7 W 730 lm 104 lm/W 3000 K 82
Ringo Star 100mm Acoustic Suspended - G1

Ringo Star 100mm Acoustic Suspended - G1

Lichtaustritt 5 (integriert)

LED

Lampentyp Lampen-Nennleistung Gesamtlichtstrom Leuchten-Lichtausbeute CCT CRI
LED 7 W 730 lm 104 lm/W 3000 K 82
Ringo Star 100mm Acoustic Suspended - G1

Ringo Star 100mm Acoustic Suspended - G1

Lichtaustritt 6 (integriert)

LED

Lampentyp Lampen-Nennleistung Gesamtlichtstrom Leuchten-Lichtausbeute CCT CRI
LED 7 W 730 lm 104 lm/W 3000 K 82
Ringo Star 100mm Acoustic Suspended - G1

Ringo Star 100mm Acoustic Suspended - G1

Lichtaustritt 7 (integriert)

LED

Lampentyp Lampen-Nennleistung Gesamtlichtstrom Leuchten-Lichtausbeute CCT CRI
LED 7 W 730 lm 104 lm/W 3000 K 82
Ringo Star 100mm Acoustic Suspended - G1

Ringo Star 100mm Acoustic Suspended - G1

Lichtaustritt 8 (integriert)

LED

Montageart

Pendel

Bauform und Abmessungen

Länge: 459 mm

Breite: 100 mm

Höhe: 80 mm

Ausrichtbarkeit

Höhenverstellbar

Elektrik

Systemleistung: 56 W

Schutzeigenschaften

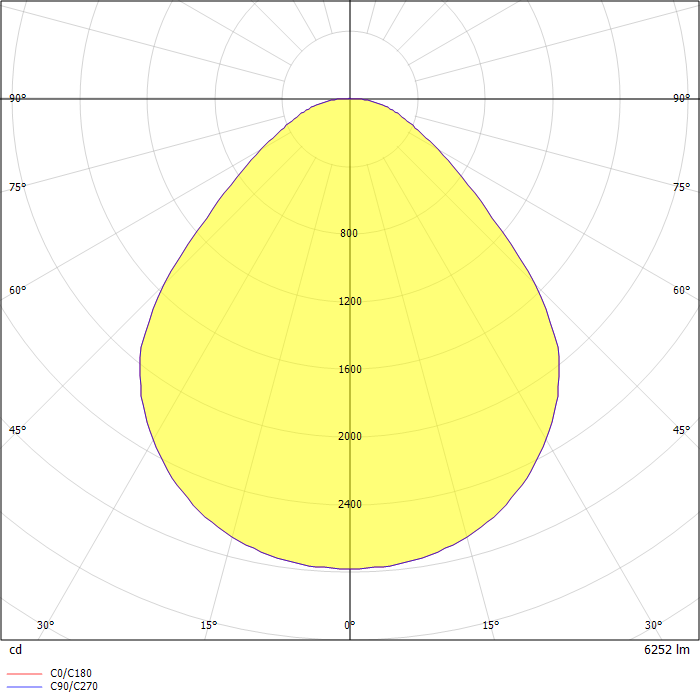

Photometrie-Dateien

ZIP file
